Component Inspection: Condenser

  1. Turn ignition switch OFF.
  2. Disconnect condenser harness connector.
  3. Check resistance between condenser terminals as 1 and 2.

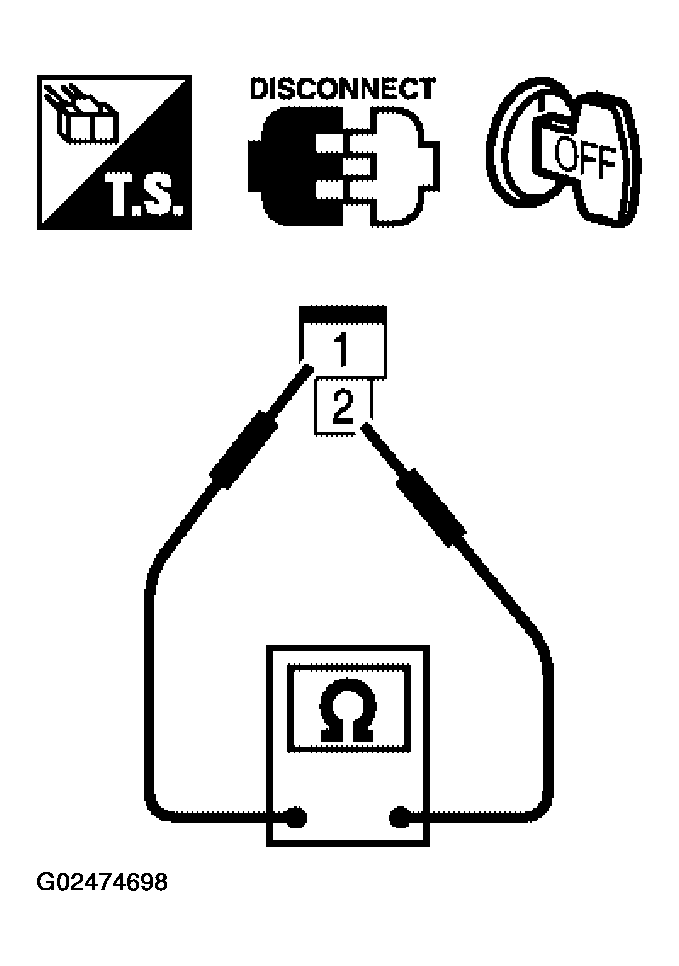

    Fig 1: Checking Resistance Between Condenser Terminals 1 & 2
    G02474698Courtesy of NISSAN MOTOR CO., U.S.A.
    RESISTANCE CONDITION TABLE

    Resistance Above 1 MΩ at 25°C (77°F)
