With CONSULT-II

  1. Reconnect harness connectors disconnected.
  2. Turn ignition switch ON.
  3. Perform "VIAS SOL VALVE" in "ACTIVE TEST" mode.

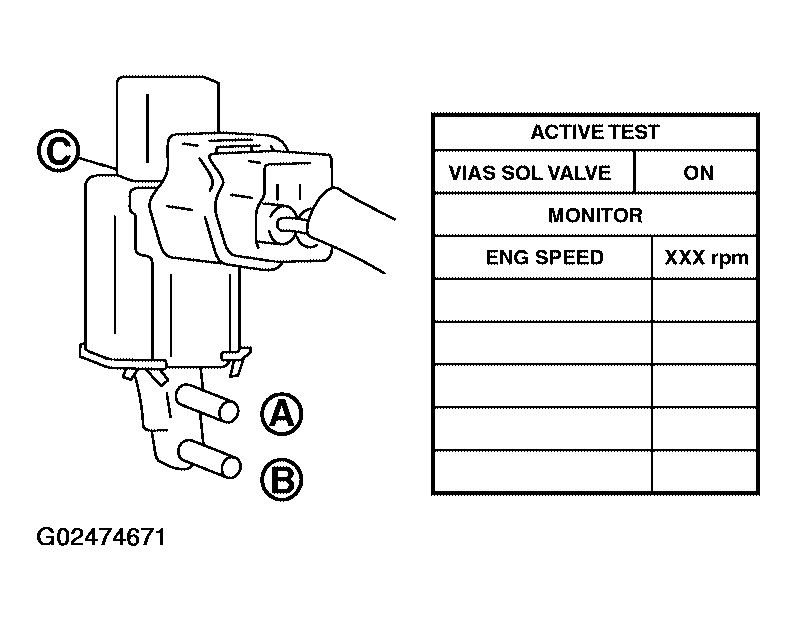

    Fig 1: Performing "VIAS Sol Valve" In "Active Test"
    G02474671Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Check air passage continuity and operation delay time under the following conditions.
    AIR PASSAGE CONTINUITY TABLE

    Condition VIAS SOL VALVE Air passage continuity between A and B Air passage continuity between A and C
    ON Yes No
    OFF No Yes
    • Operation takes less than 1 second.
