Method A

  1. Slide the harness protector of ignition coil No. 1 to clear the wires.
  2. Attach timing light to the ignition coil No. 1 wires as shown in Fig 1.

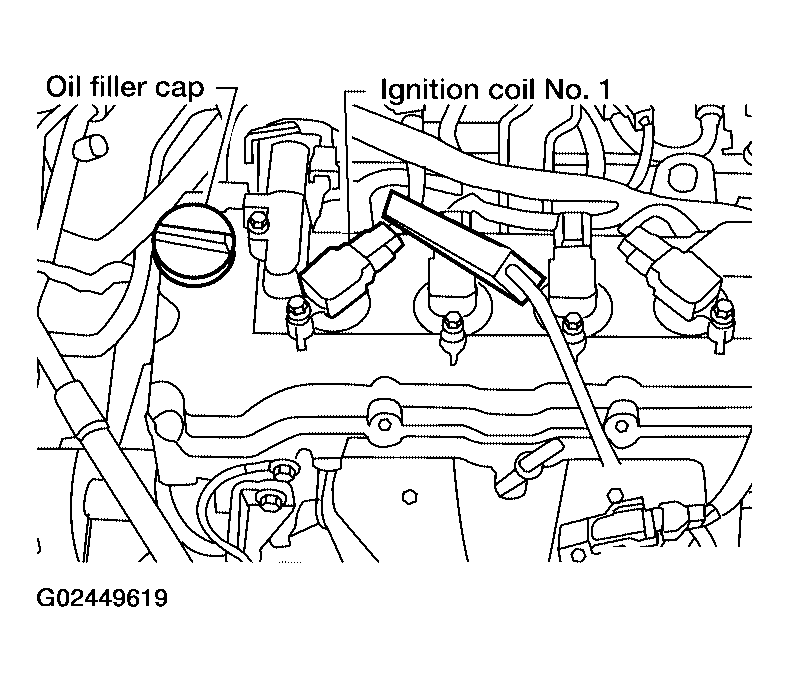

    Fig 1: Attaching Timing Light To The Ignition Coil No. 1 Wire
    G02449619Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Check ignition timing.

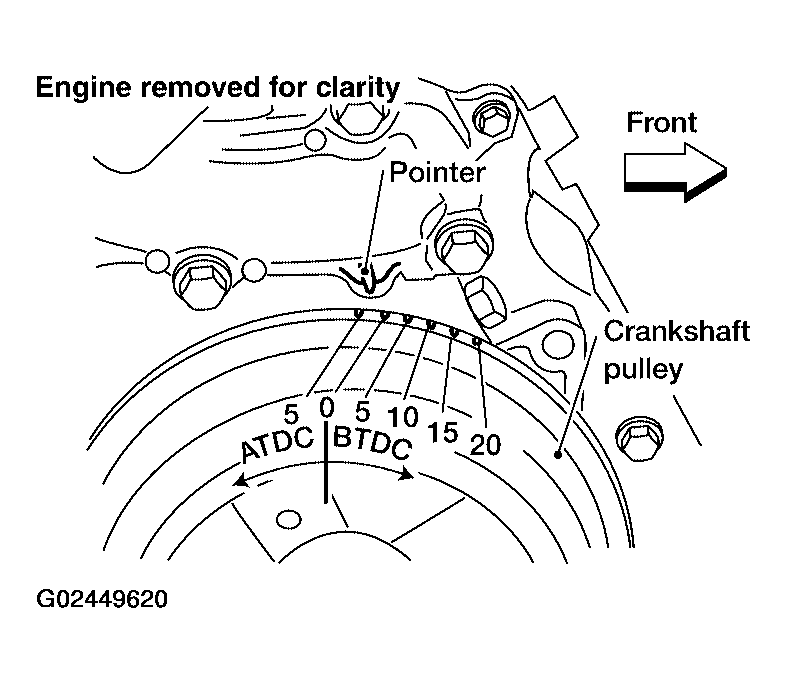

    Fig 2: Identifying Crankshaft Pulley Timing Marks
    G02449620Courtesy of NISSAN MOTOR CO., U.S.A.
