CONSULT-II Reference Value in Data Monitor Mode

Specification data are reference values.

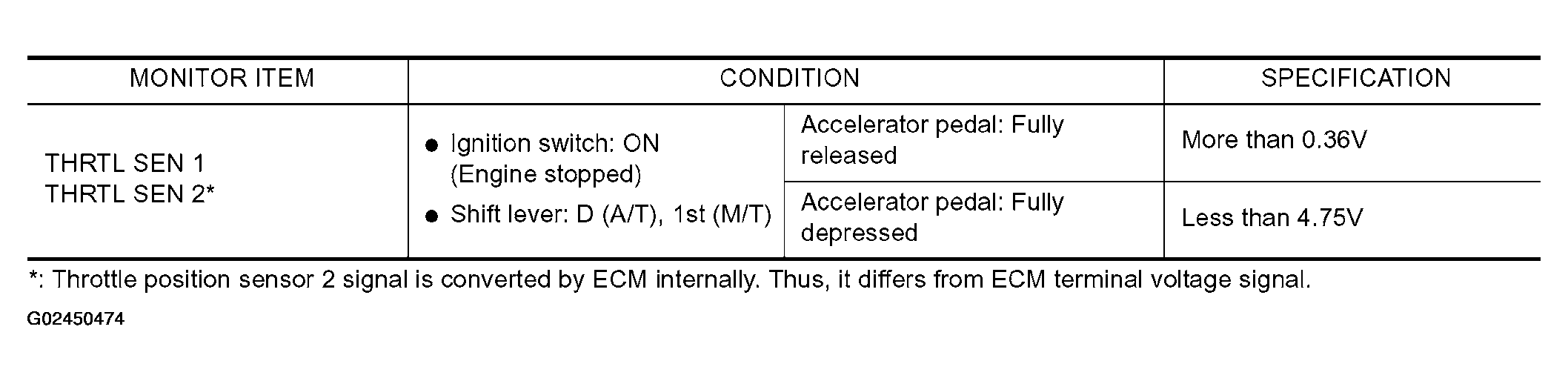

Fig 1: CONSULT-II Data Monitor/Condition Reference Value Chart - Throttle Position Sensors 1 & 2

Courtesy of NISSAN MOTOR CO., U.S.A.
