Rear Window Defogger Relay

Check continuity between terminals 3 and 5, 6 and 7.

REAR WINDOW DEFOGGER RELAY - CONDITION AND CONTINUITY SPECIFICATIONS

Condition	Continuity
12 V direct current supply between terminals 1 and 2	Yes
No current supply	No

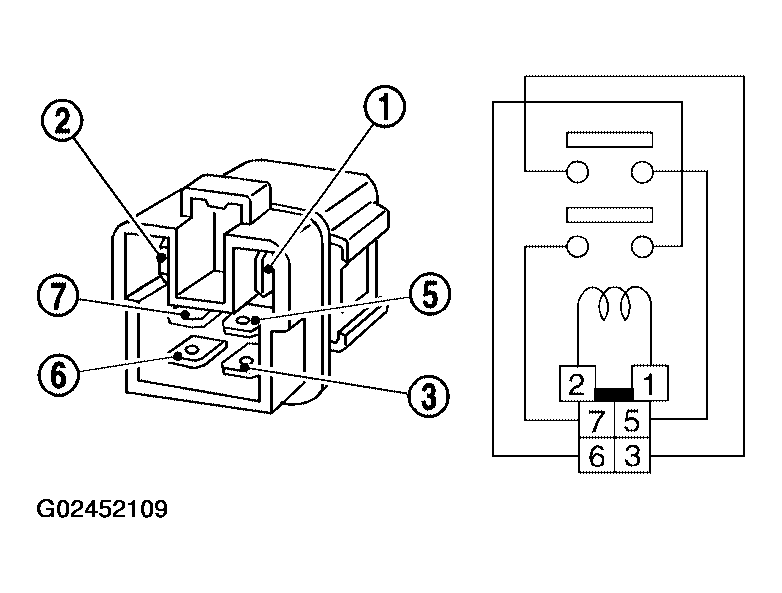

Fig 1: Identifying Rear Window Defogger Relay Terminals

Courtesy of NISSAN MOTOR CO., U.S.A.
