CONSULT-II Reference Value in Data Monitor Mode

Specification data are reference values.

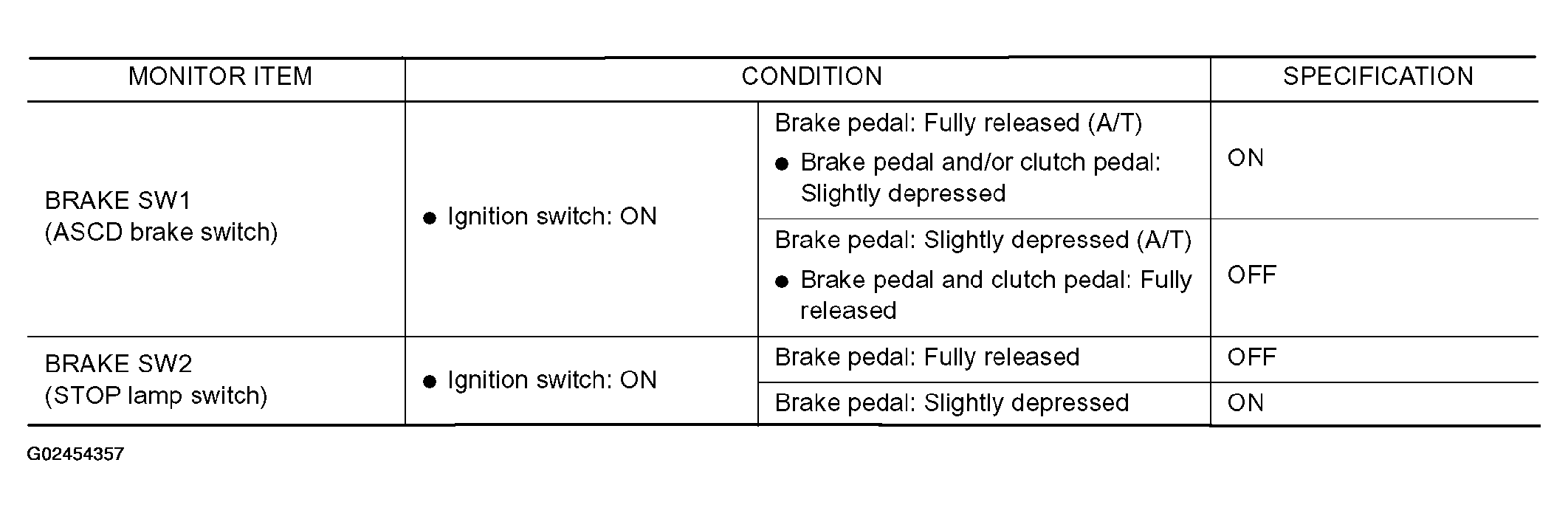

Fig 1: CONSULT-II Reference Value Chart - ASCD (Cruise Control) Brake Switch & Stop Lamp Switch Circuits
G02454357Courtesy of NISSAN MOTOR CO., U.S.A.
