Home >> Nissan-Datsun >> 2005 >> Sentra SE-R >> Repair and Diagnosis >> Transmission >> Automatic Transmission (Re4F04B) >> Overall System >> Control Mechanism >> Line Pressure Control >> During Shift Change

During Shift Change

The line pressure is temporarily reduced corresponding to a change in engine torque when shifting gears (that is, when the shift solenoid valve is switched for clutch operation) to reduce shifting shock.

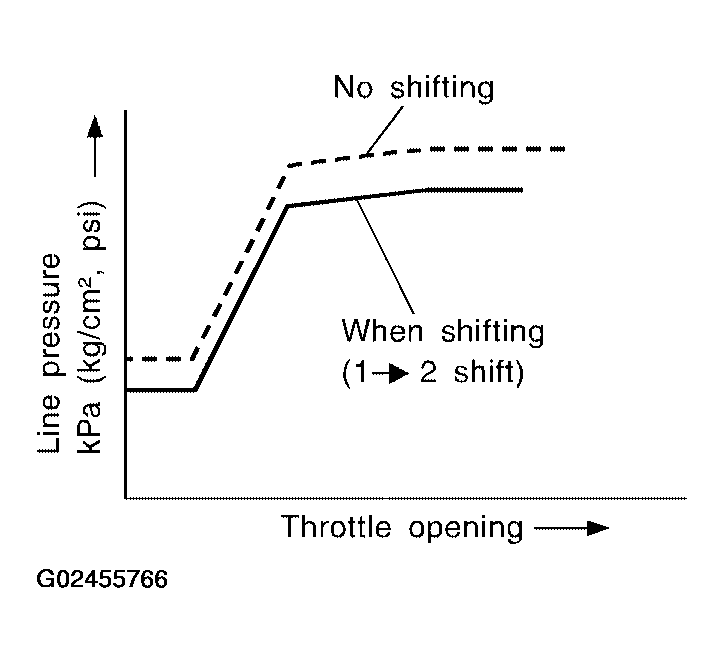

Fig 1: Shift Change Characteristic Graph
G02455766Courtesy of NISSAN MOTOR CO., U.S.A.
