Input/Output Signal Of TCM

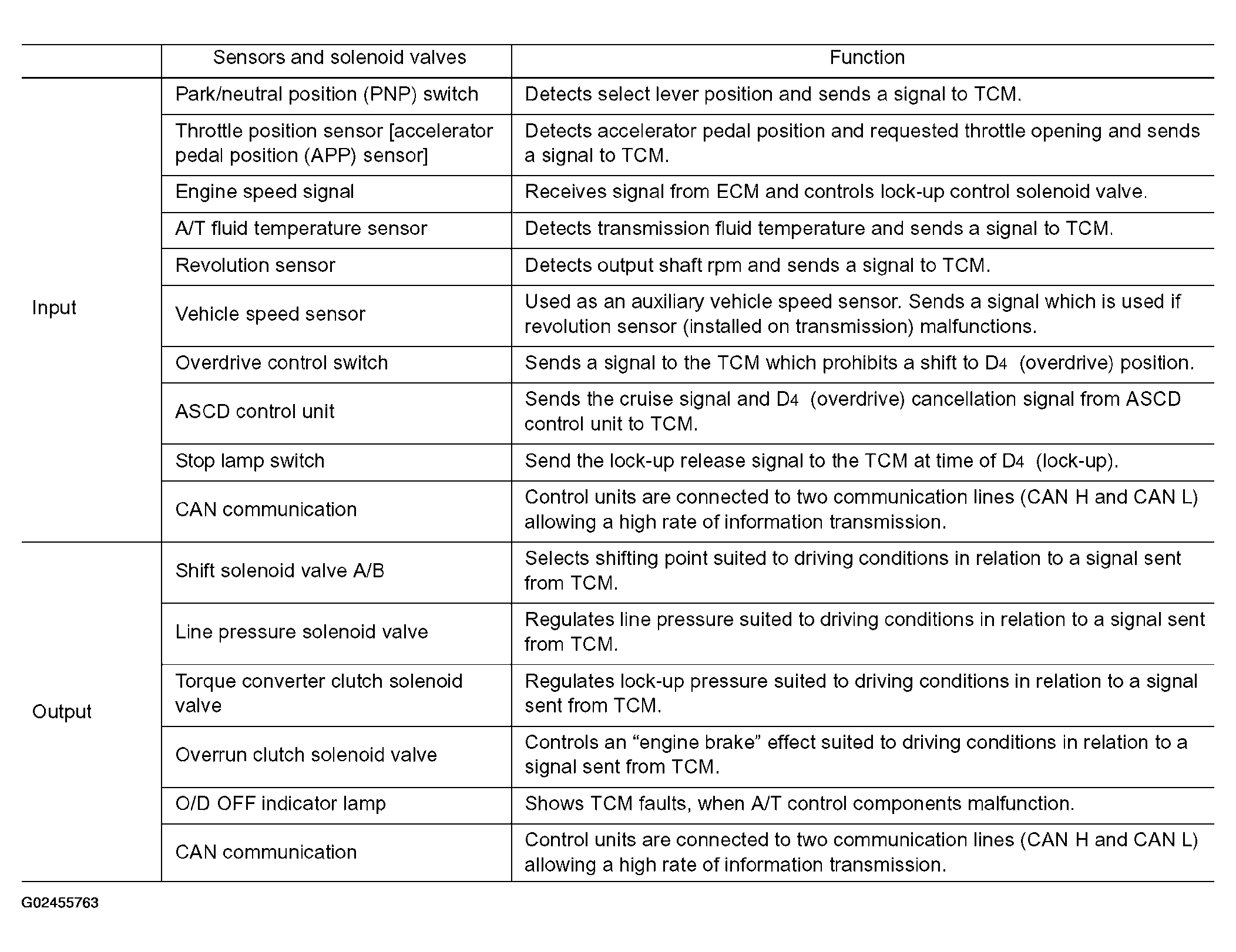

Fig 1: Input/Output Signal Of TCM Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
