Control System: Outline

The automatic transaxle senses vehicle operating conditions through various sensors. It always controls the optimum shift position and reduces shifting and lock-up shocks.

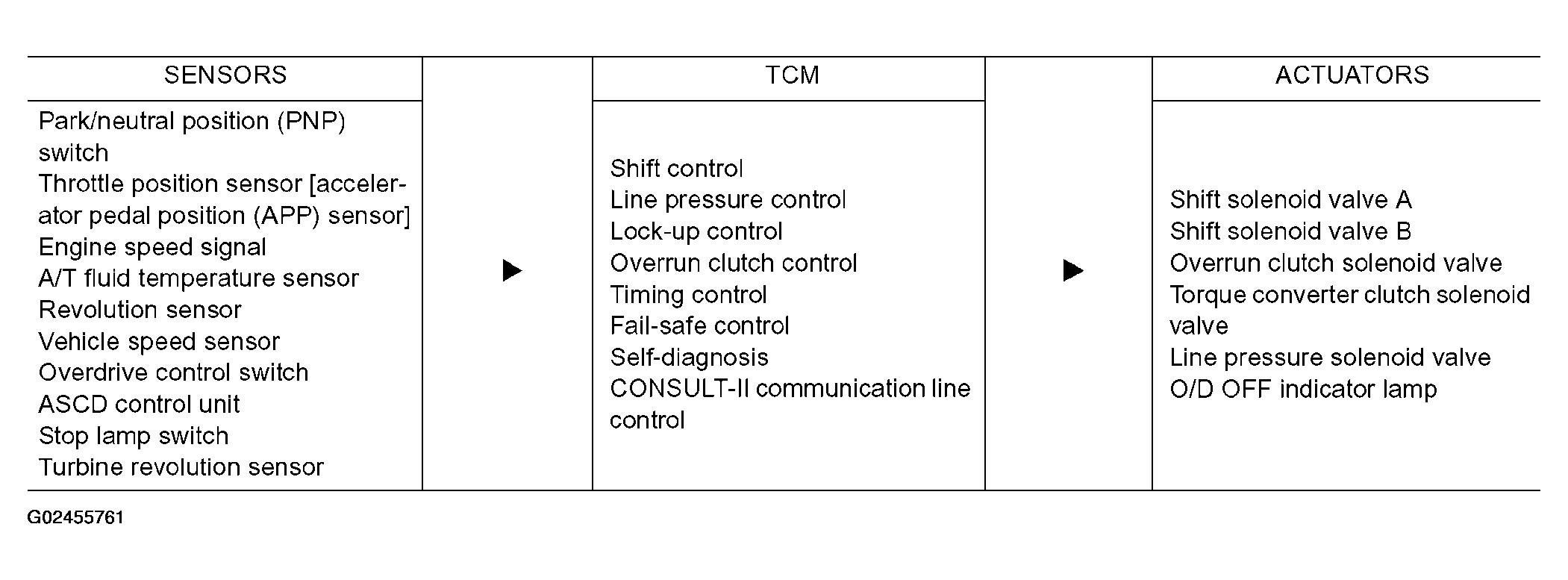

Fig 1: Control System Reference Chart
G02455761Courtesy of NISSAN MOTOR CO., U.S.A.
