Home >> Nissan-Datsun >> 2005 >> Sentra SE-R >> Repair and Diagnosis >> Transmission >> Automatic Transmission (Re4F04B) >> Repair For Component Parts >> Control Valve Lower Body >> Components

Control Valve Lower Body: Components

Apply ATF to all components before installation.

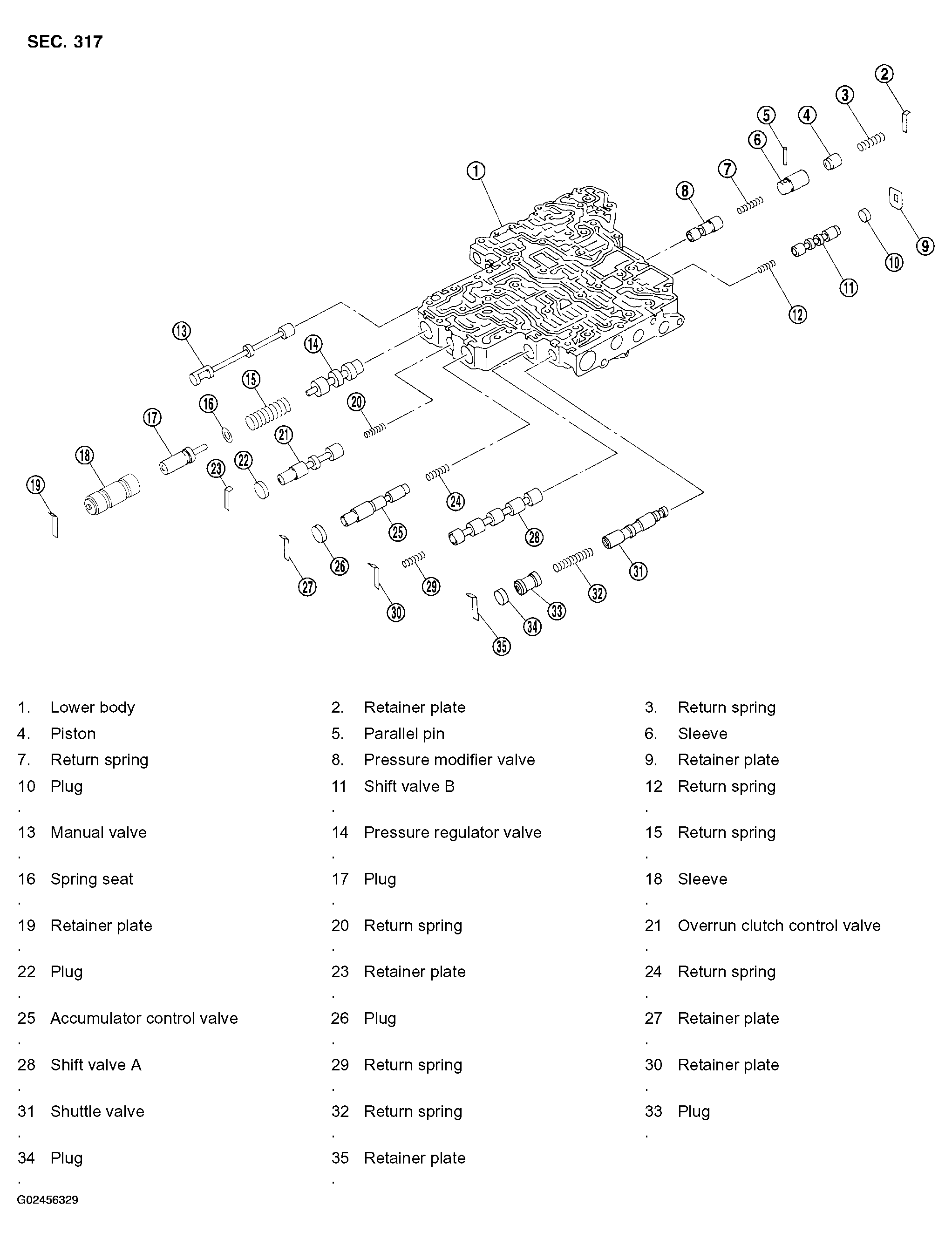

Fig 1: Exploded View Of Control Valve Lower Body

G02456329

Courtesy of NISSAN MOTOR CO., U.S.A.
