Front Seat: Components

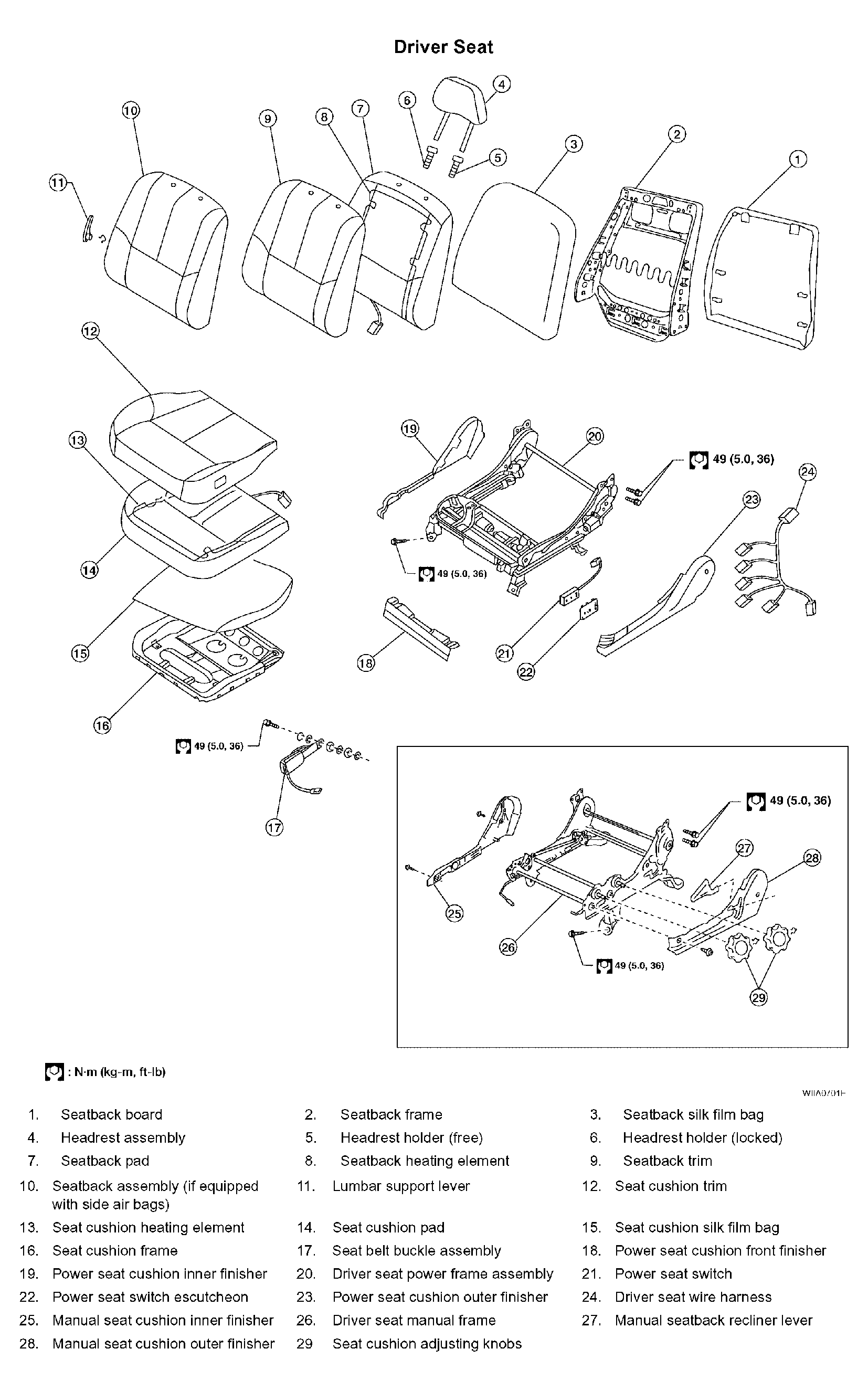

Fig 1: Exploded View Of Front Seat (With Specifications) (Driver Seat)
G04170453Courtesy of NISSAN MOTOR CO., U.S.A.

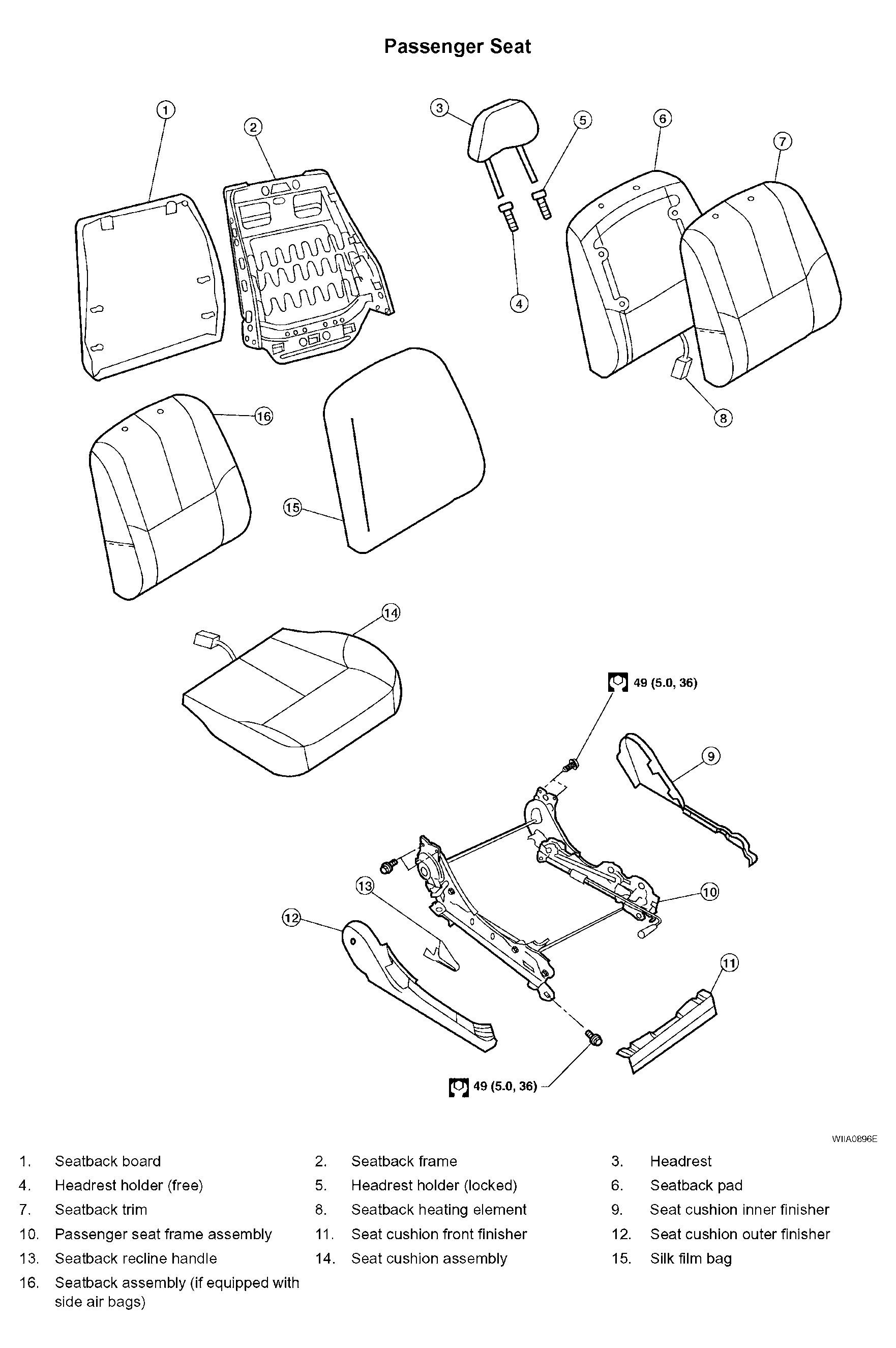

Fig 2: Exploded View Of Front Seat (With Specifications) (Passenger Seat)
G04170454Courtesy of NISSAN MOTOR CO., U.S.A.
