Engine Compartment: Measurement

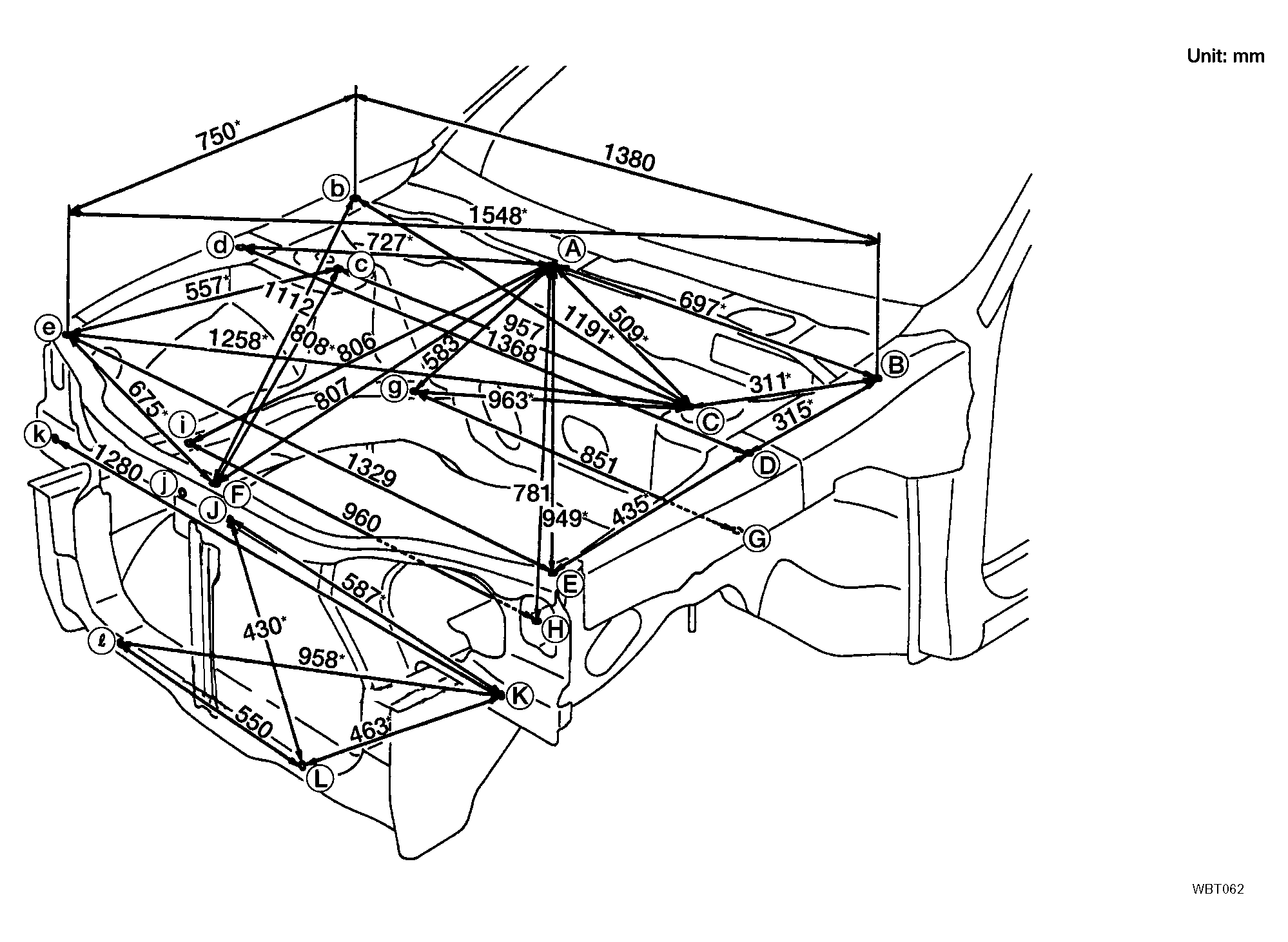

Fig 1: Identifying Engine Compartment Measurement (1 Of 2)
G04195056Courtesy of NISSAN MOTOR CO., U.S.A.

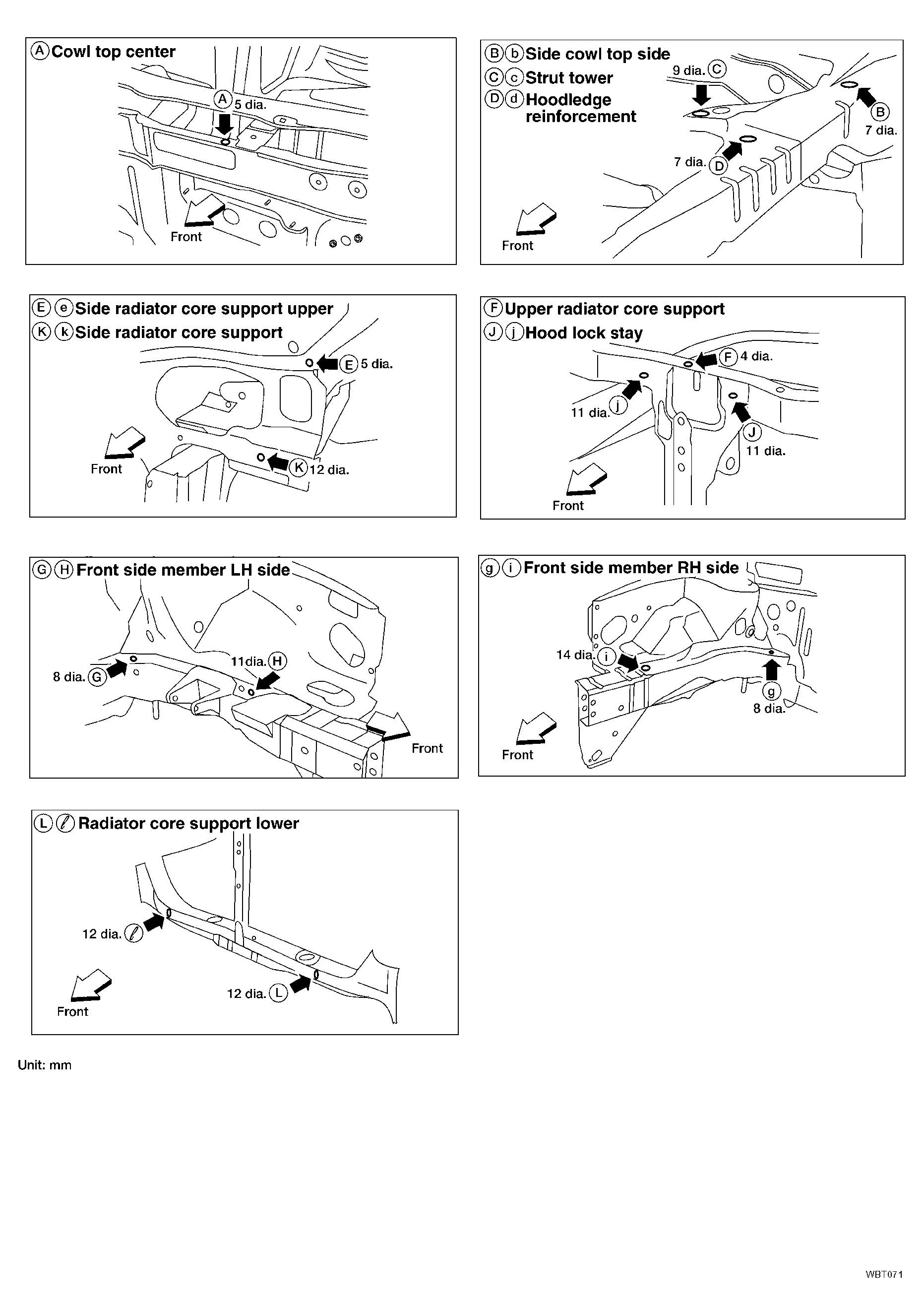

Fig 2: Identifying Engine Compartment Measurement (2 Of 2)
G04195057Courtesy of NISSAN MOTOR CO., U.S.A.
