Front Wheel Turning Angle

  1. Rotate steering wheel all the way right and left; measure turning angle.

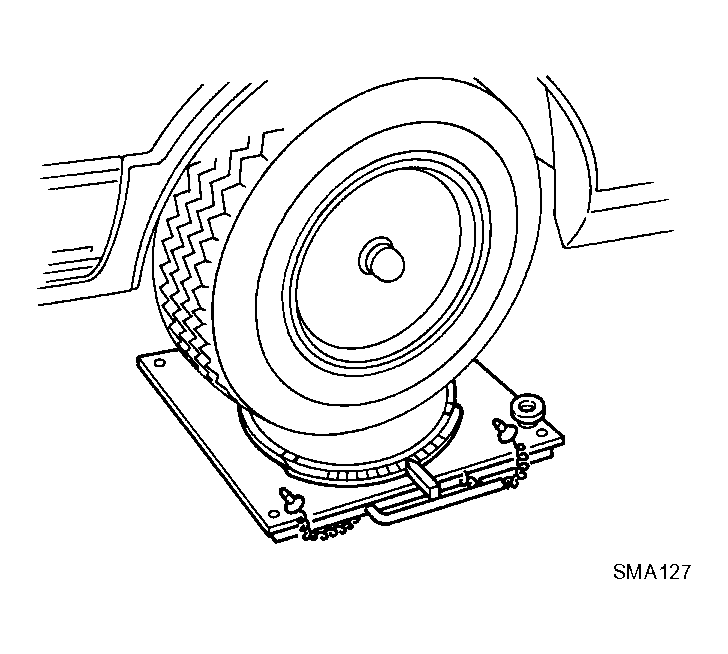

    Fig 1: Checking Front Wheel Turning Angle
    G04194754Courtesy of NISSAN MOTOR CO., U.S.A.

    Turning angle of full turns :  Refer to "FRONT WHEEL ALIGNMENT "

  2. If it is not within specification, check rack stroke.

    Rack stroke "S" :  Refer to "STEERING GEAR AND LINKAGE "
