Engine Control System - Component Testing (VQ35DE)
>>
Symptom Diagnosis
>>
Engine Control System Symptoms
>>
Symptom Table
>>
System-Basic Engine Control System
System-Basic Engine Control System

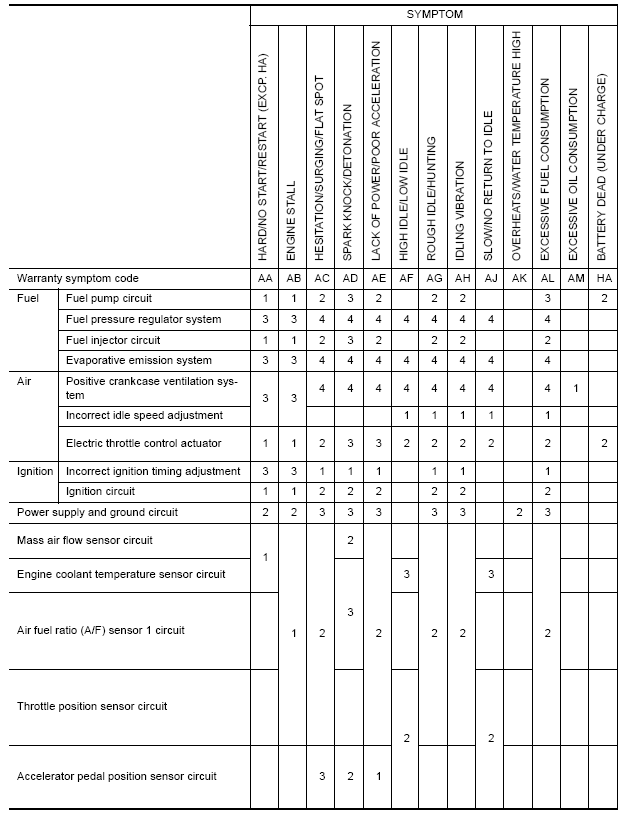

Fig 1: Symptom Chart For System Basic Engine Control System (1 Of 2)
Courtesy of NISSAN NORTH AMERICA, INC.

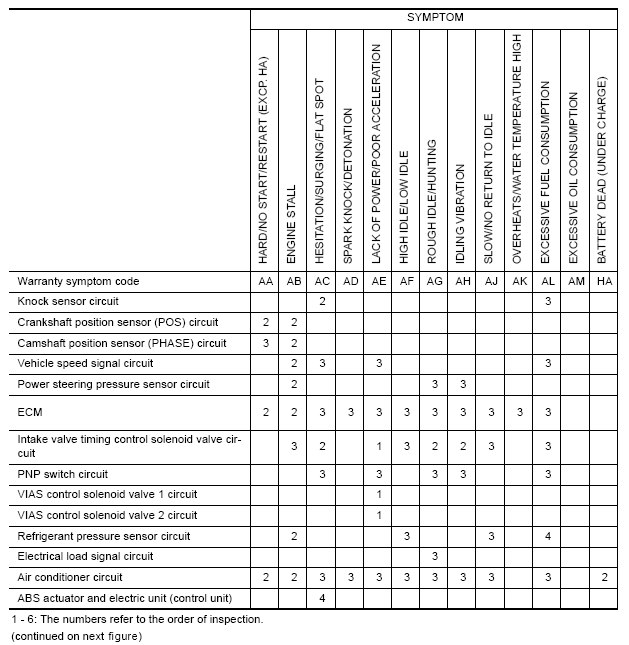

Fig 2: Symptom Chart For System Basic Engine Control System (2 Of 2)
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
