Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

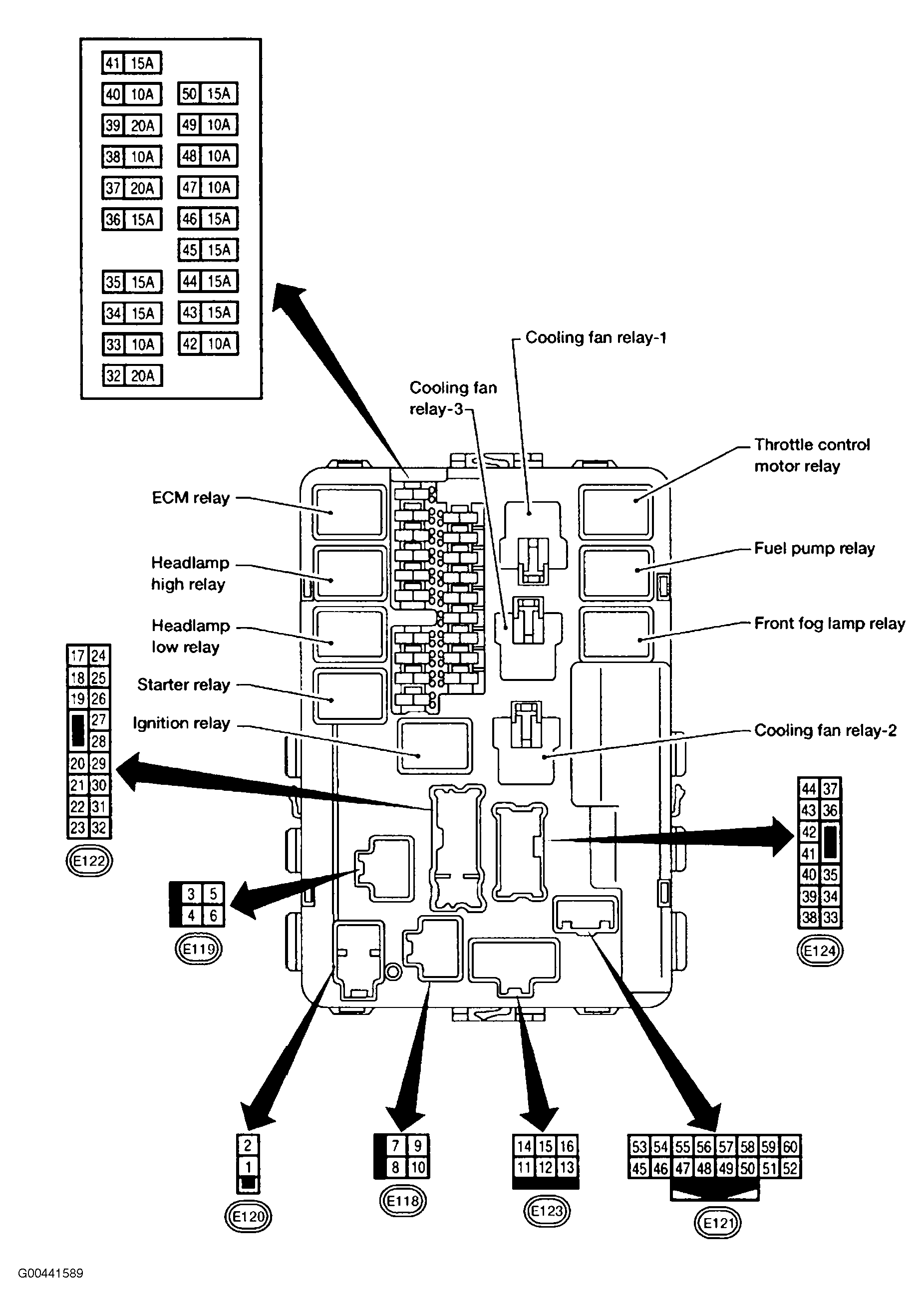

Fig 1: IPDM E/R (Intelligent Power Distribution Module Engine Room)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 2: Dash & Center Console

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 3: Right Side Of Body & Luggage Compartment Harness

Courtesy of NISSAN MOTOR CO., U.S.A.

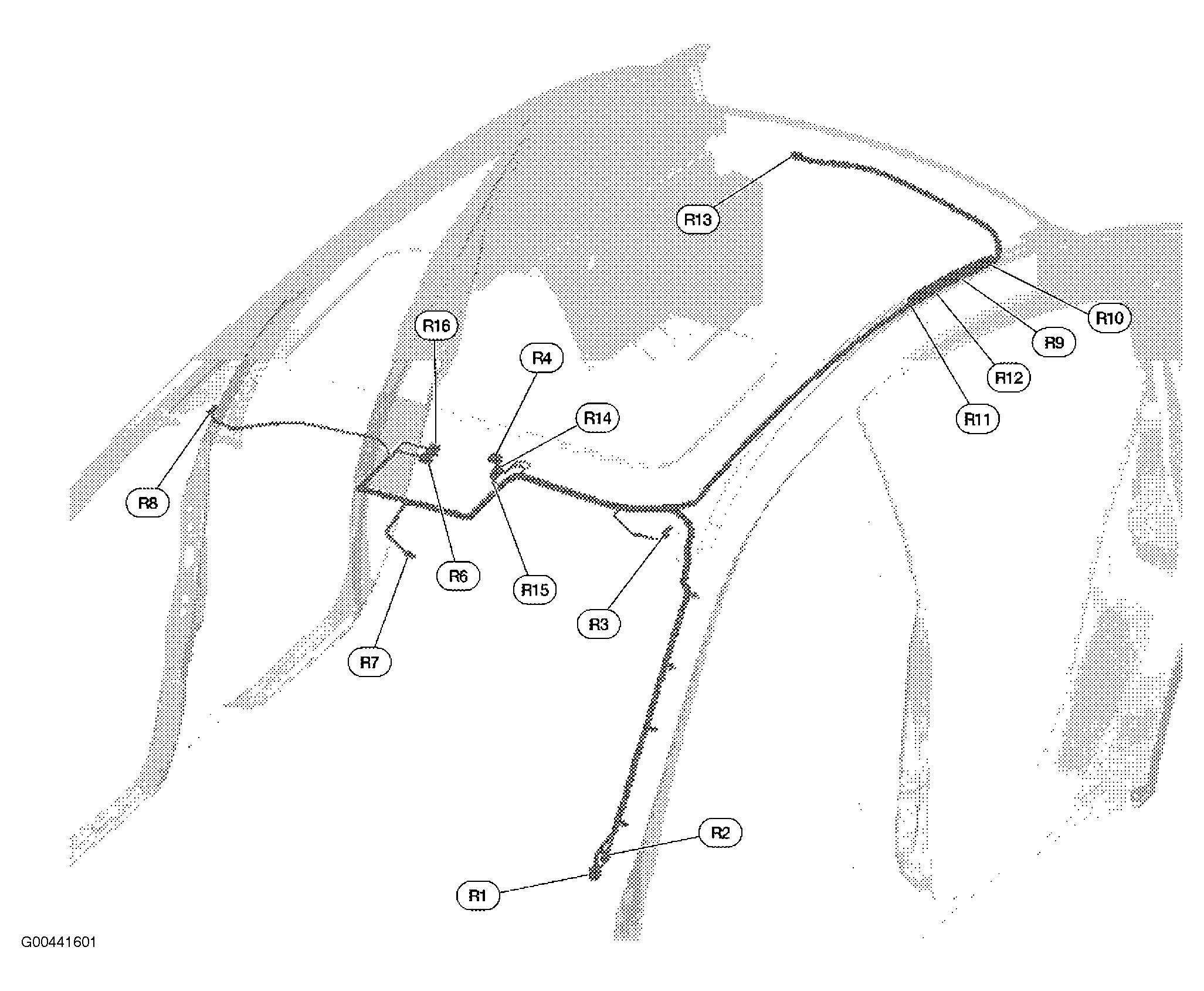

Fig 4: Roof

Courtesy of NISSAN MOTOR CO., U.S.A.

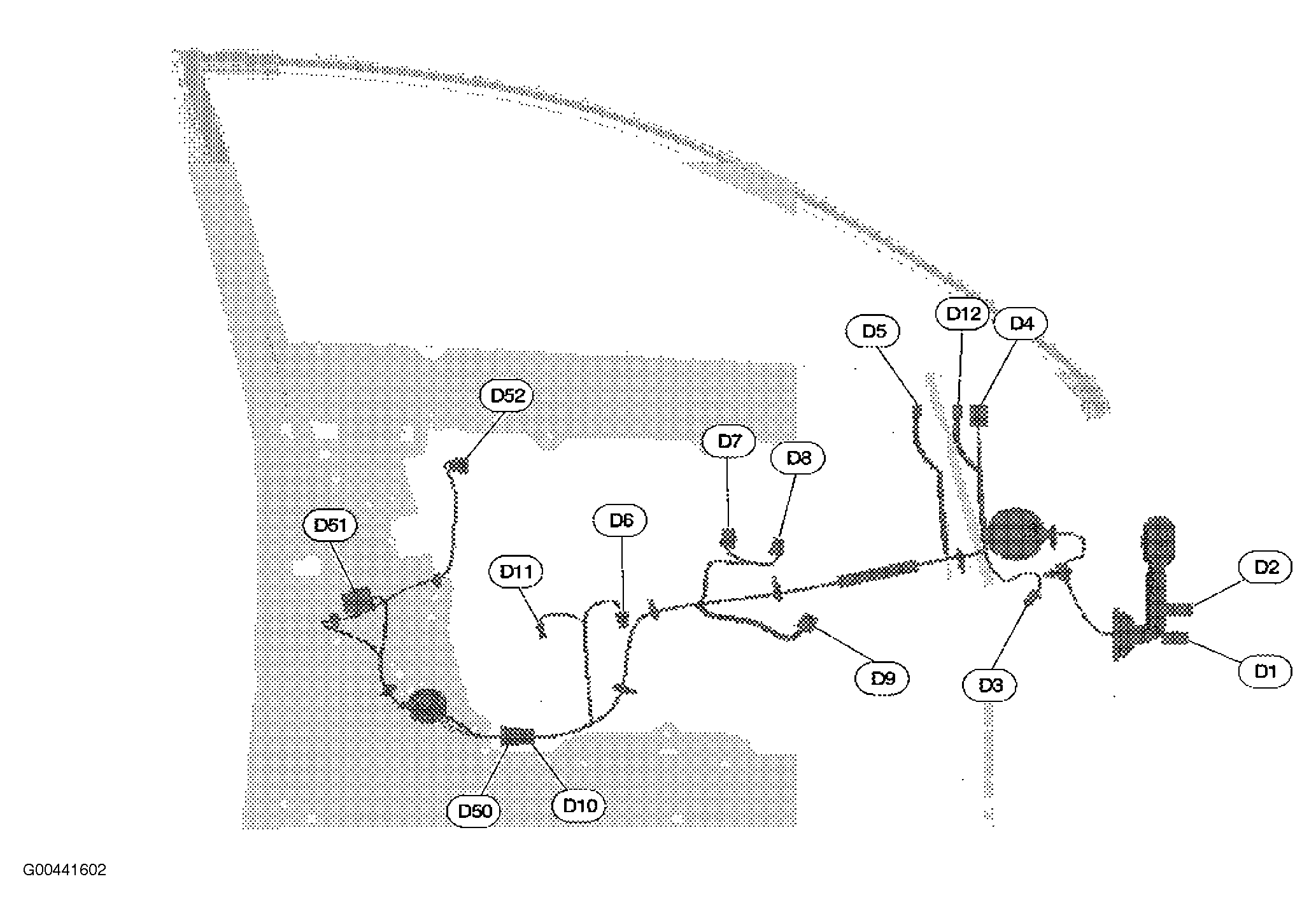

Fig 5: Right Front Door

Courtesy of NISSAN MOTOR CO., U.S.A.

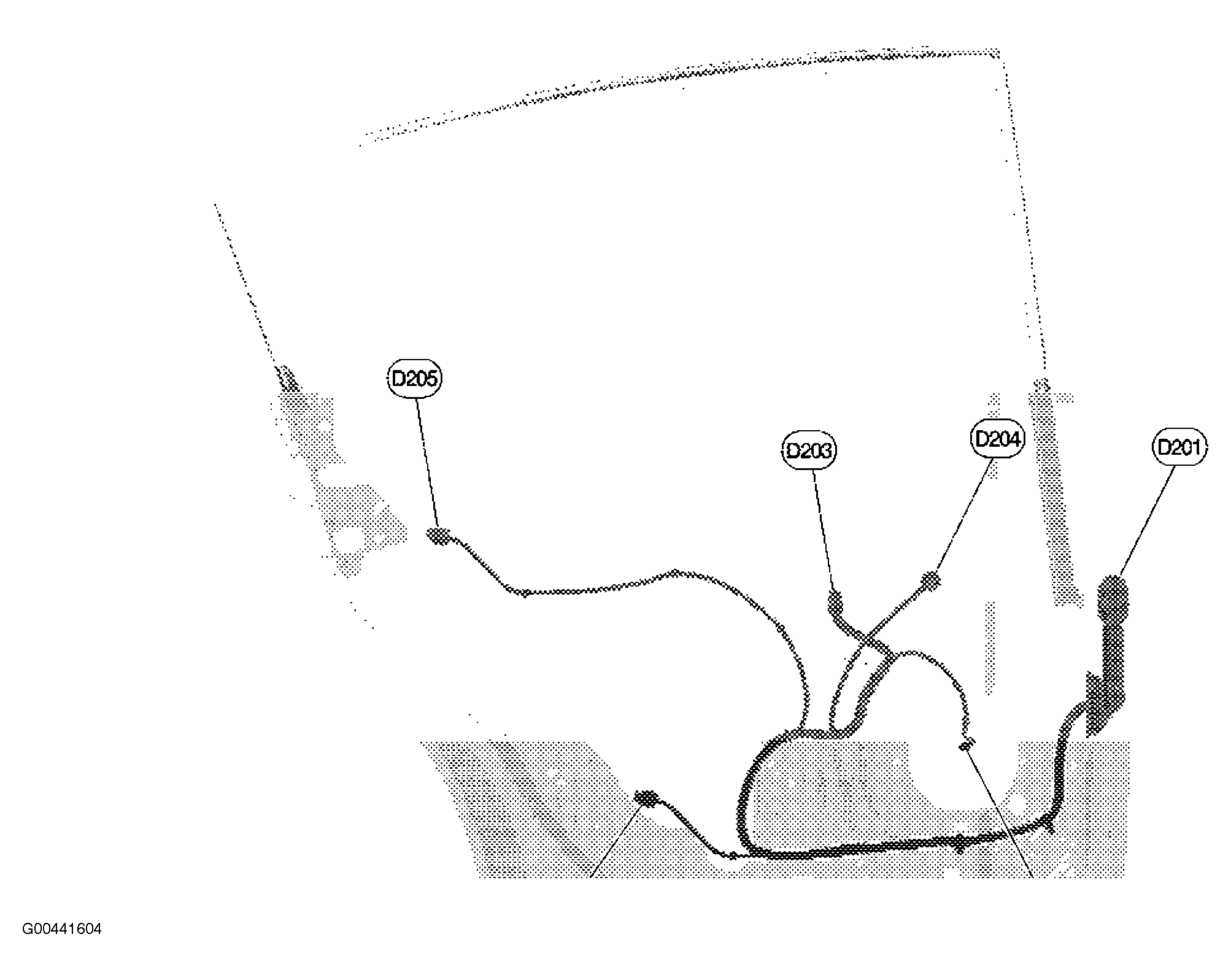

Fig 6: Right Rear Door

Courtesy of NISSAN MOTOR CO., U.S.A.

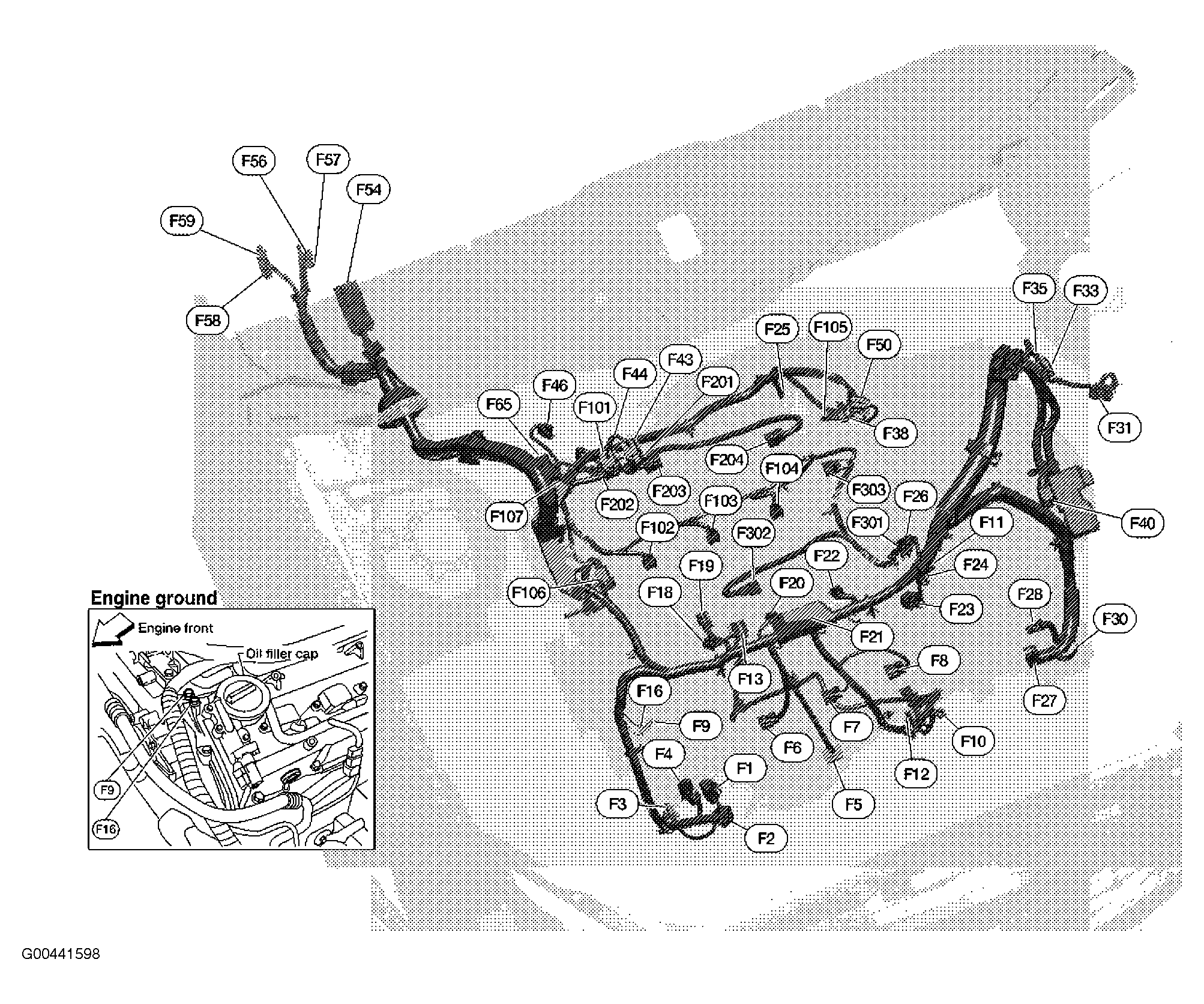

Fig 7: Engine Compartment

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 8: Dash Views (1 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 9: Dash Views (2 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 10: Dash Views (3 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

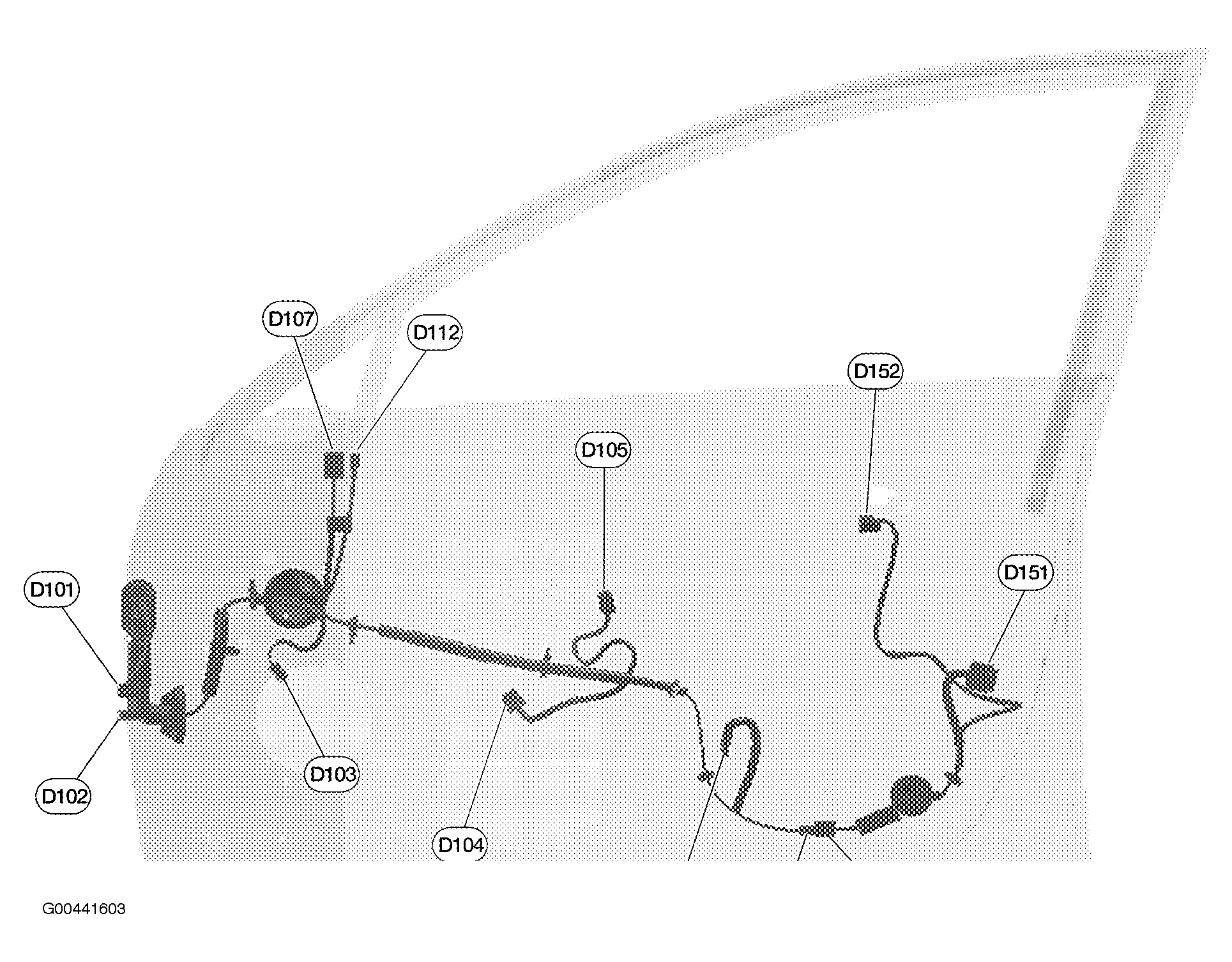

Fig 11: Left Front Door

Courtesy of NISSAN MOTOR CO., U.S.A.

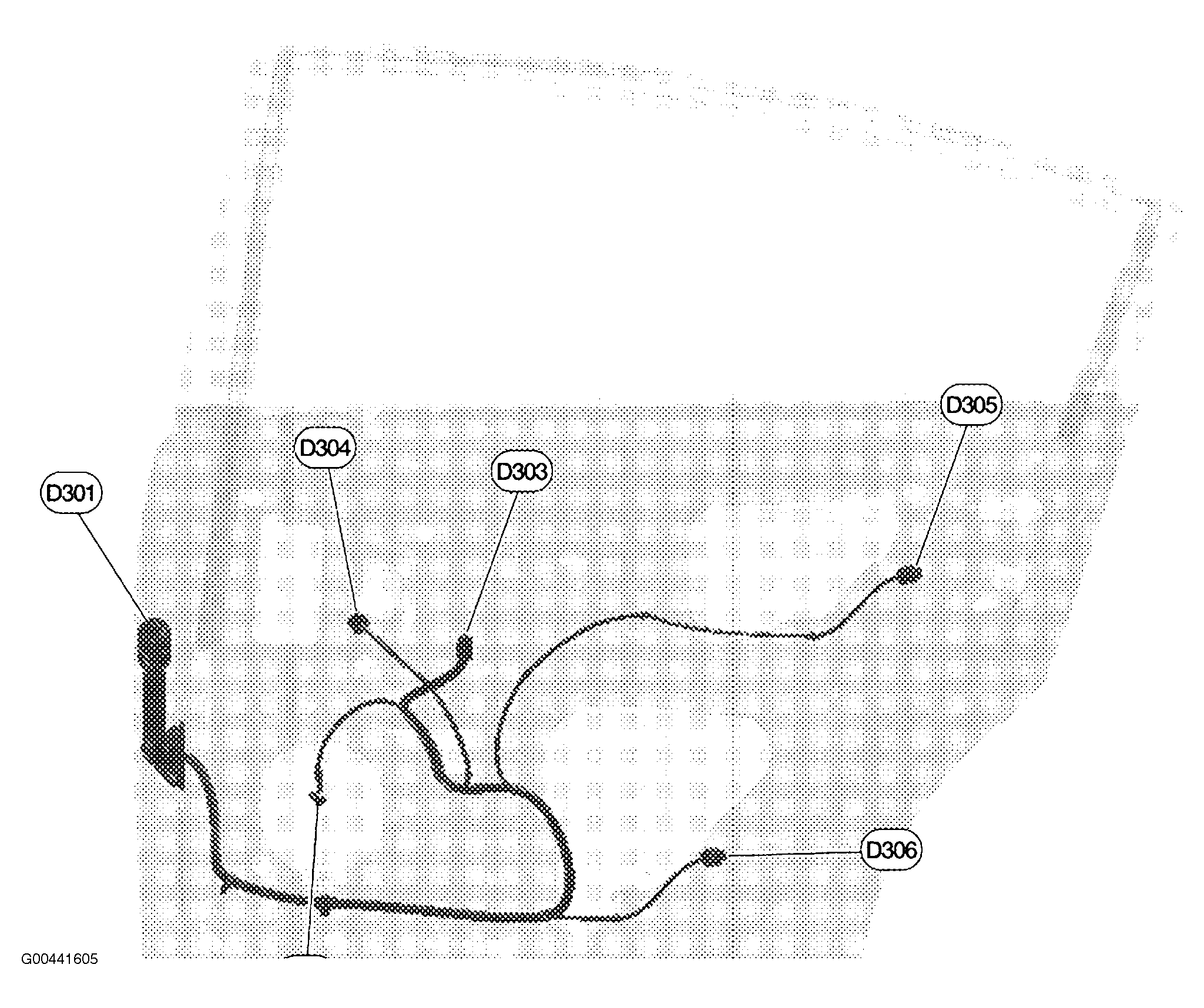

Fig 12: Left Rear Door

Courtesy of NISSAN MOTOR CO., U.S.A.

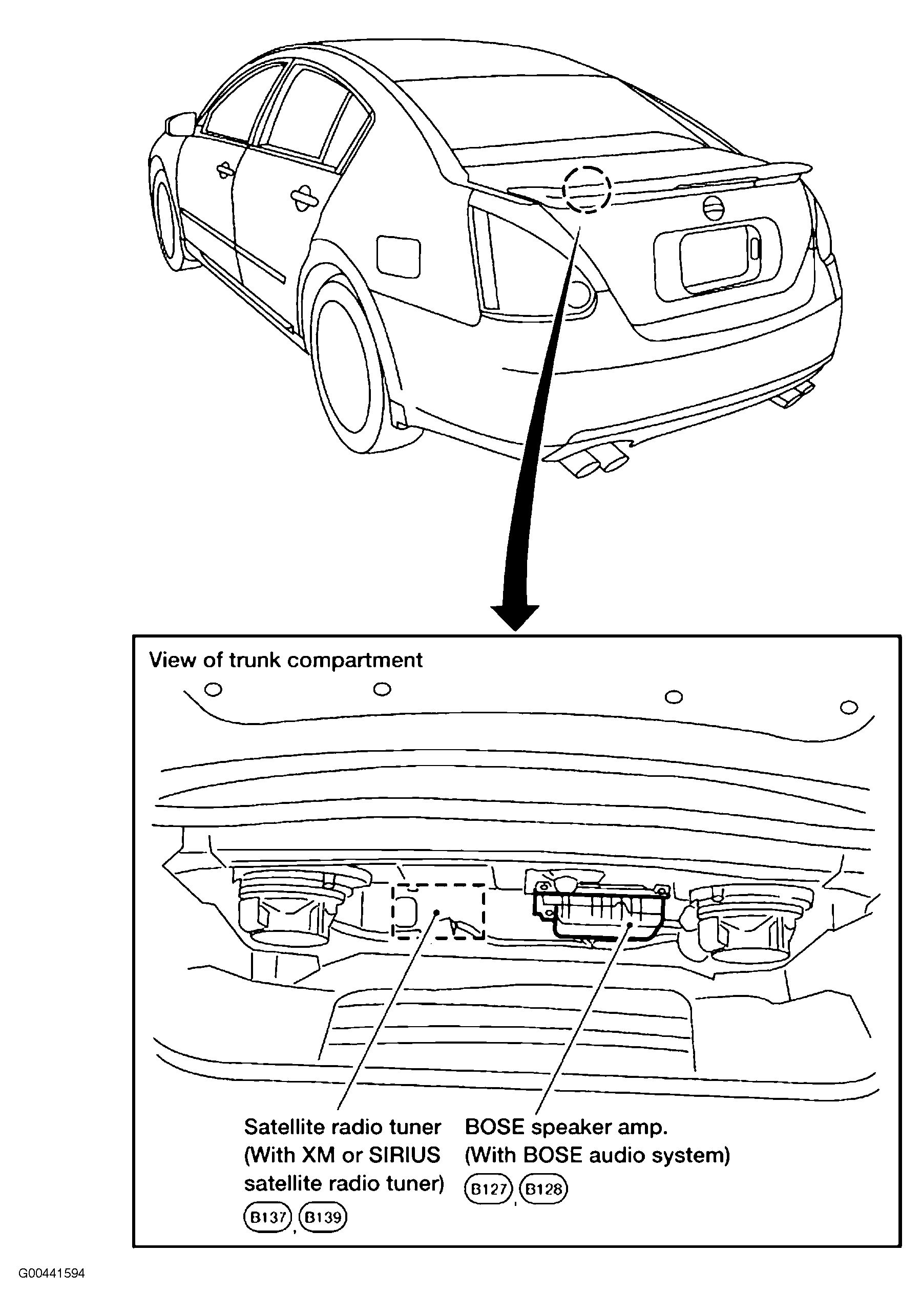

Fig 13: Front Of Luggage Compartment

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 14: Left Side Of Engine Compartment

Courtesy of NISSAN MOTOR CO., U.S.A.

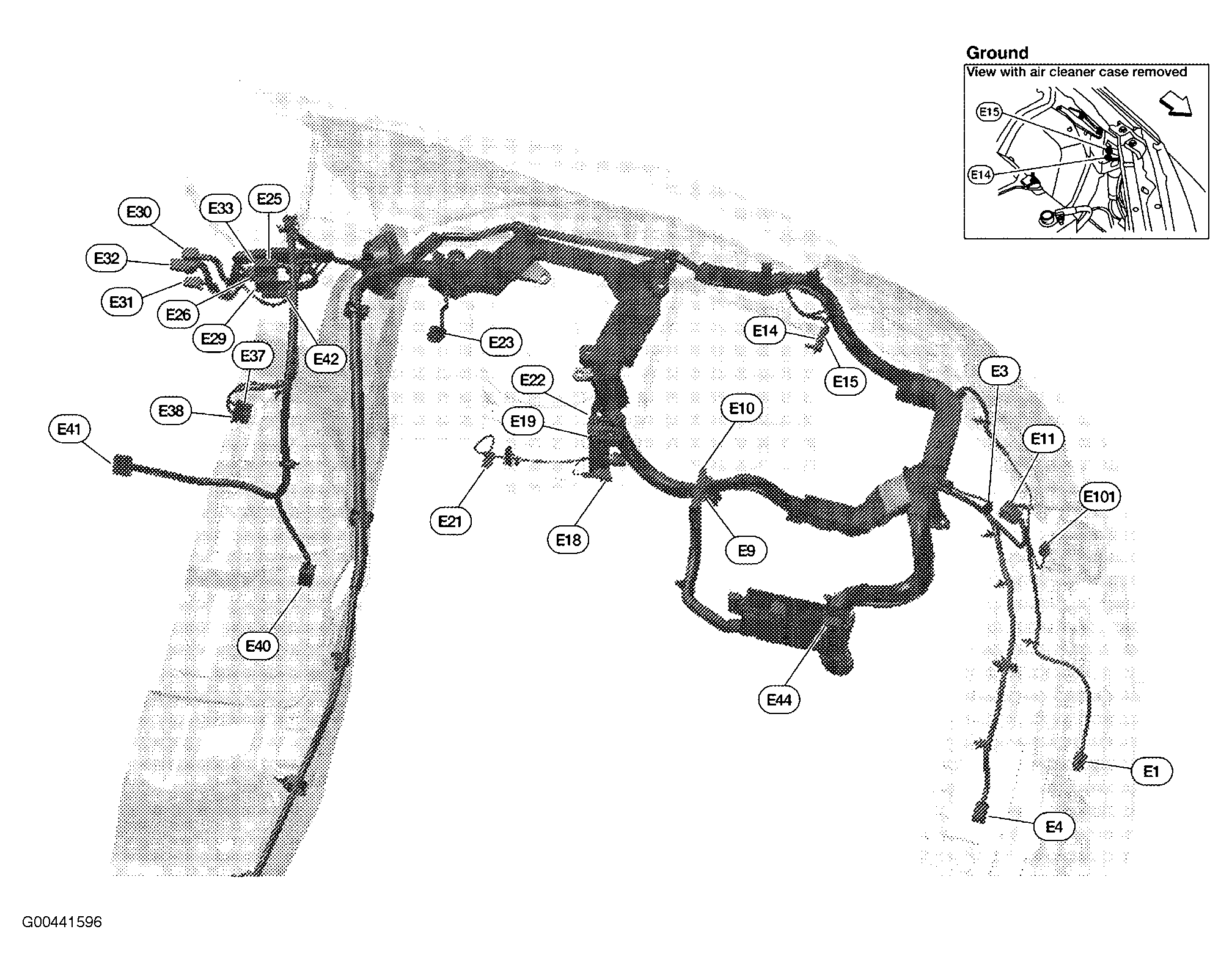

Fig 15: Right Side Of Engine Compartment

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 16: Engine & Right End Of Dash

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 17: Left Side Of Body & Luggage Compartment Lid Harness

Courtesy of NISSAN MOTOR CO., U.S.A.
