Frontier XE
>>
Repair and Diagnosis
>>
Electrical
>>
Body Electrical
>>
Power Control System
>>
Function Diagnosis
>>
Relay Control System
>>
System Diagram
System Diagram

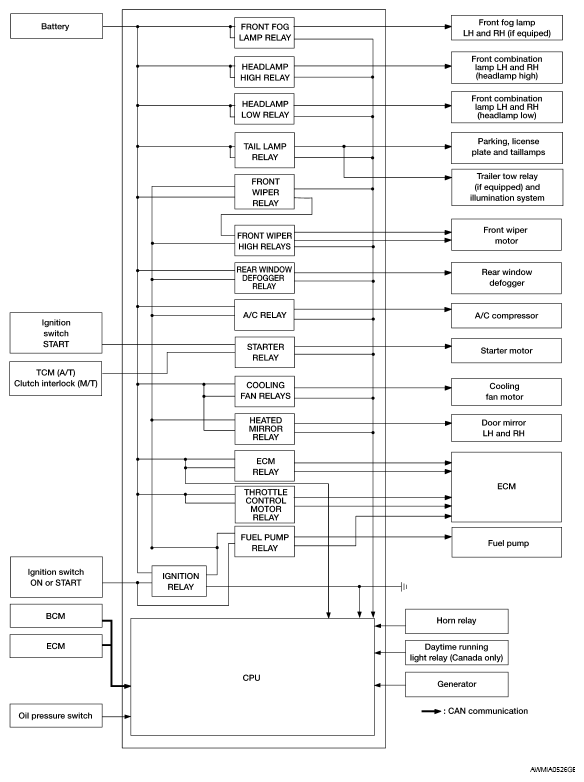

Fig 1: Identifying Relay Control System Diagram
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
