Vacuum Hose Drawing

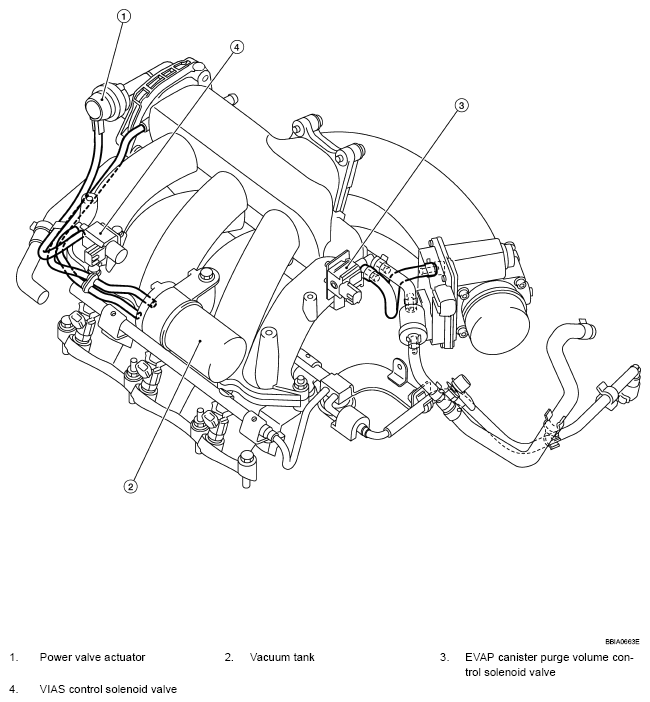

Fig 1: Identifying VIAS Control Solenoid Valve, Power Valve Actuator And Vacuum Tank

Courtesy of NISSAN MOTOR CO., U.S.A.

NOTE: Do not use soapy water or any type of solvent while installing vacuum hose or purge hoses.

Refer to "SYSTEM DIAGRAM " for Vacuum Control System.
