ASCD Indicator
>>
Wiring Diagram
ASCD Indicator: Wiring Diagram
For PG, go to
POWER SUPPLY, GROUND & CIRCUIT ELEMENTS
.

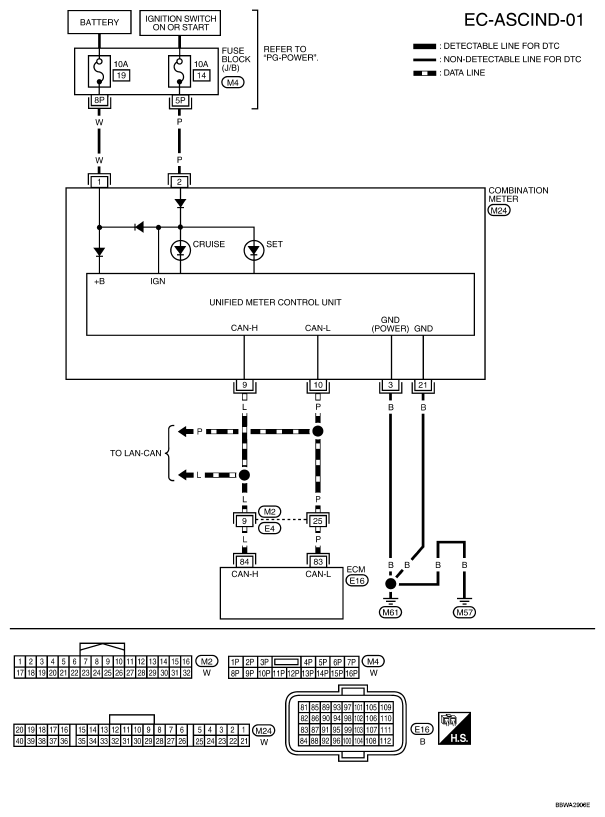

Fig 1: Wiring Diagram - EC-ASCIND-01
Courtesy of NISSAN MOTOR CO., U.S.A.
