Engine Control System - Introduction (MR20DE)
>>
Trouble Diagnosis
>>
Symptom Matrix Chart
>>
System - Basic Engine Control System
System - Basic Engine Control System

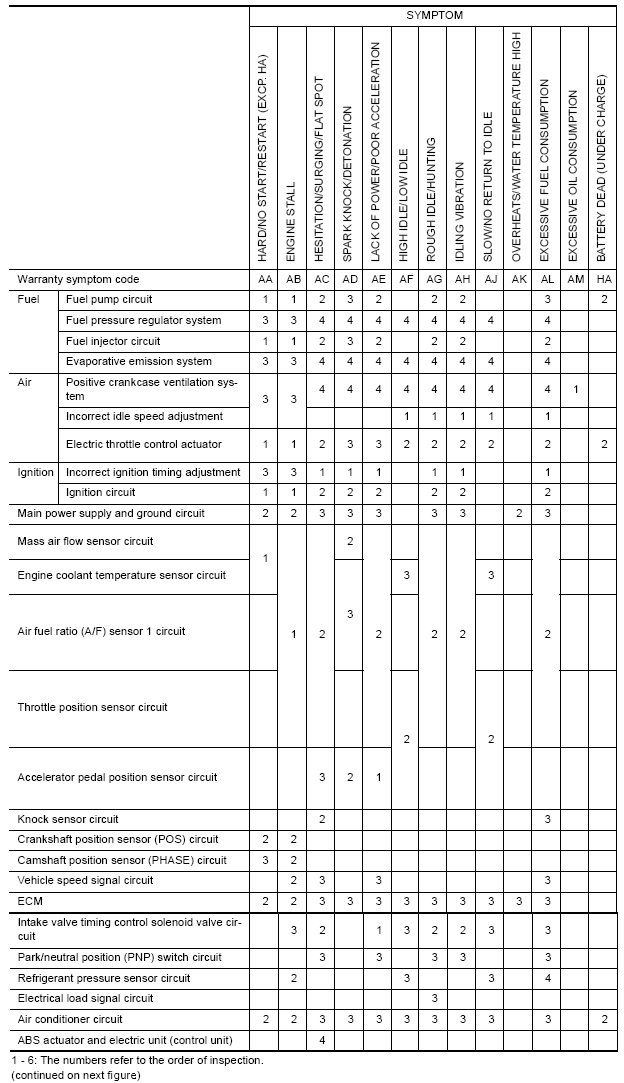

Fig 1: Basic Engine Control System - Symptom Matrix Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
