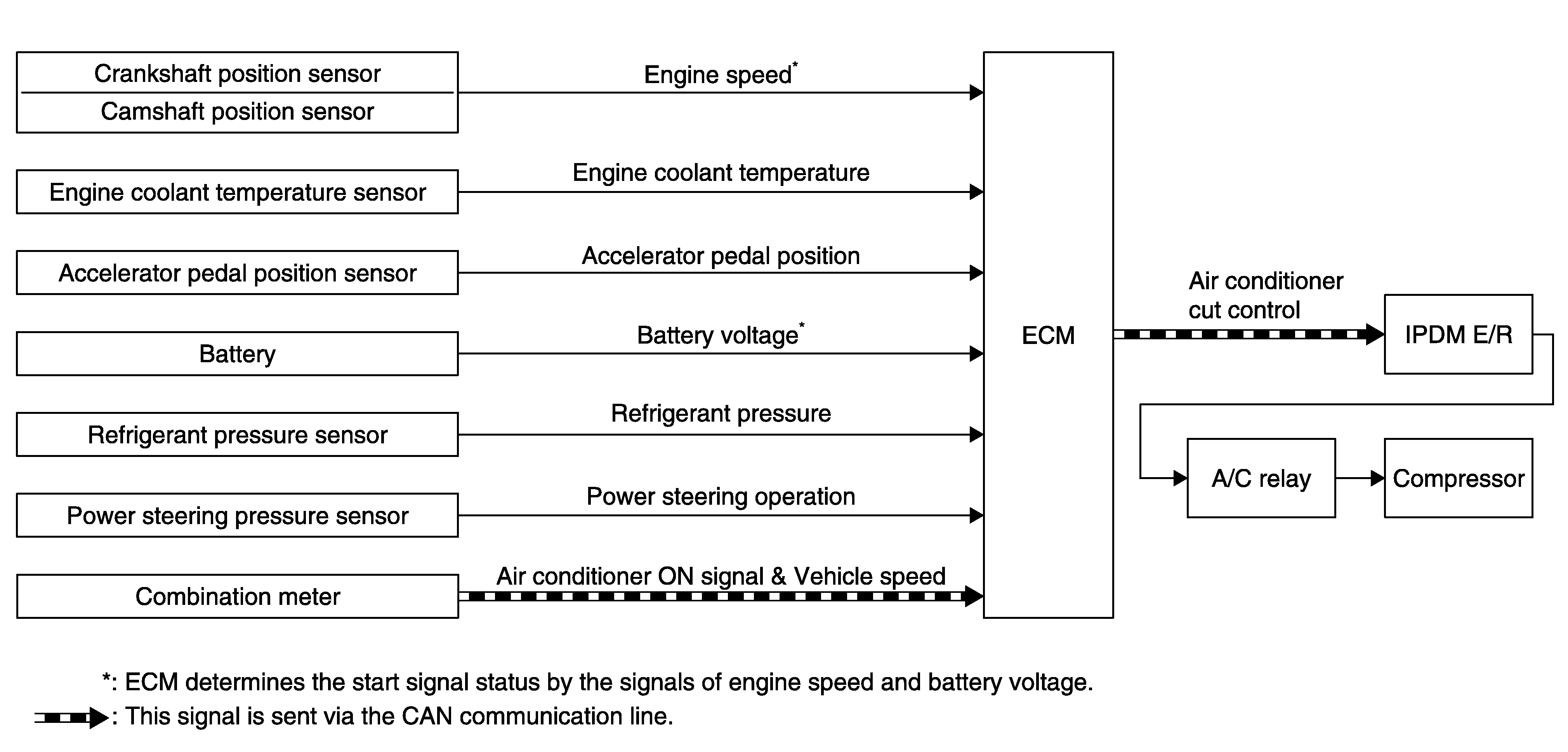

Home >> Nissan-Datsun >> 2009 >> 370Z Base, Automatic >> Repair and Diagnosis >> Engine Performance >> System >> Engine Control System - Introduction >> Function Diagnosis >> Air Conditioning Cut Control >> System Diagram
