Removal And Installation
>>
Steering Angle Sensor
>>
Exploded View
Exploded View

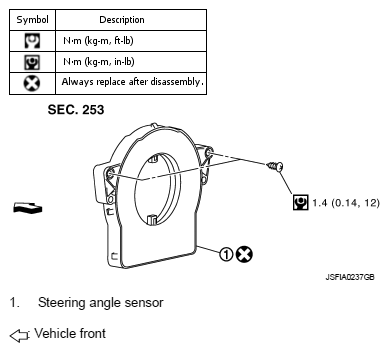

Fig 1: Steering Angle Sensor With Torque Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.
Refer to "
COMPONENTS
" for the symbols in the figure.
