Exploded View: Disassembly

figure matter-13 Type: A002TJ0581

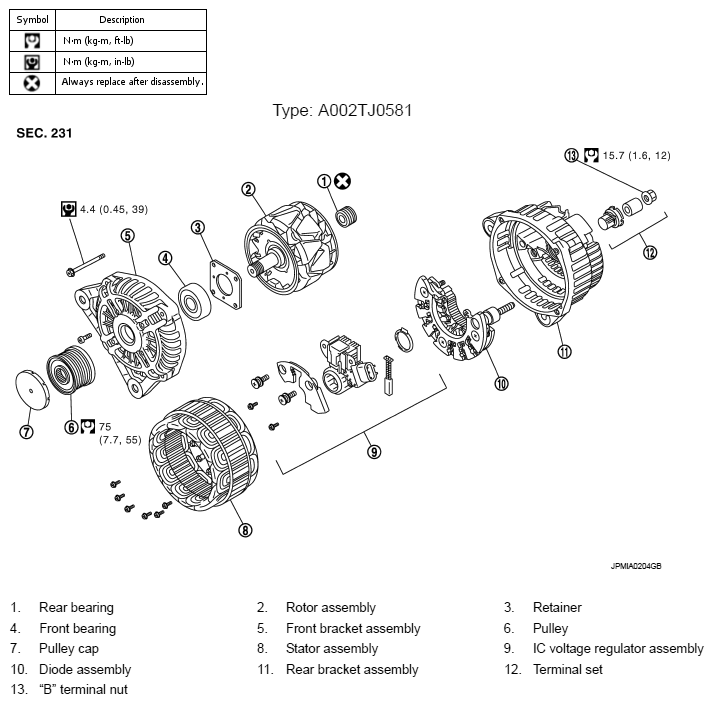

Fig 1: Exploded View Of Alternator With Torque Specifications

Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to "COMPONENTS " for symbols in the figure.
