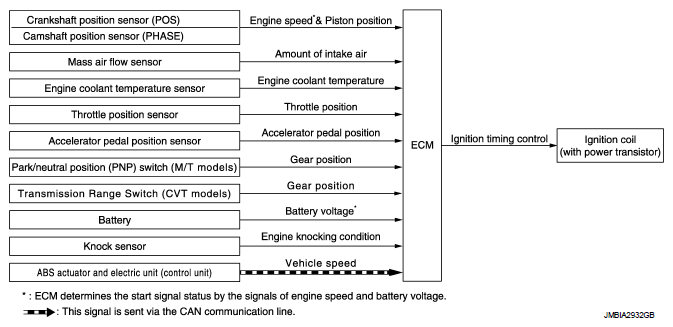

Home >> Nissan-Datsun >> 2009 >> Cube Base >> Repair and Diagnosis >> Engine Performance >> System >> Engine Control System - Introduction >> System Description >> Electric Ignition System >> System Diagram
