Intelligent Key System: Schematic

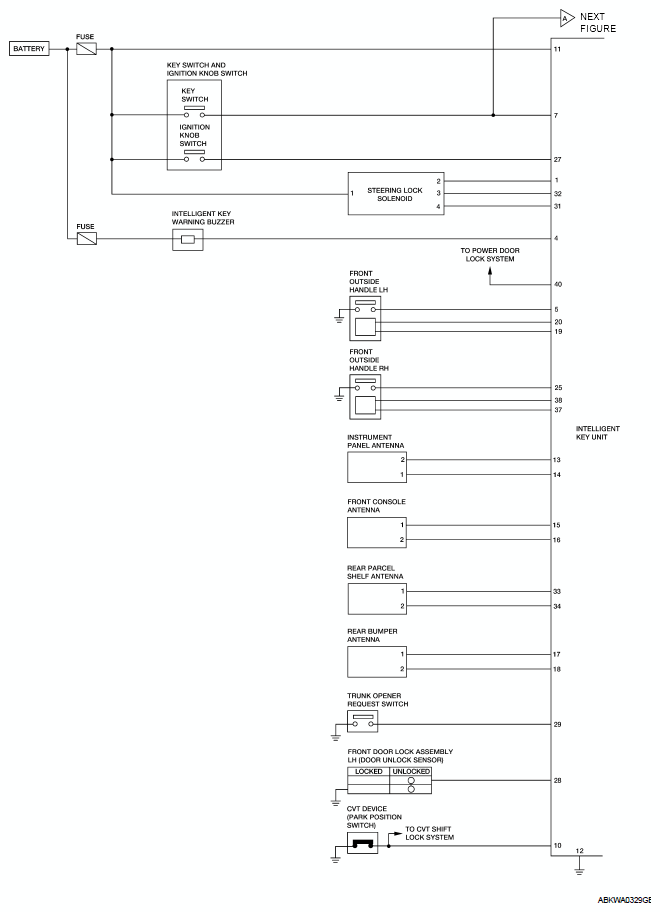

Fig 1: Intelligent Key System - Schematic Diagram (1 Of 2)
G05924662Courtesy of NISSAN MOTOR CO., U.S.A.

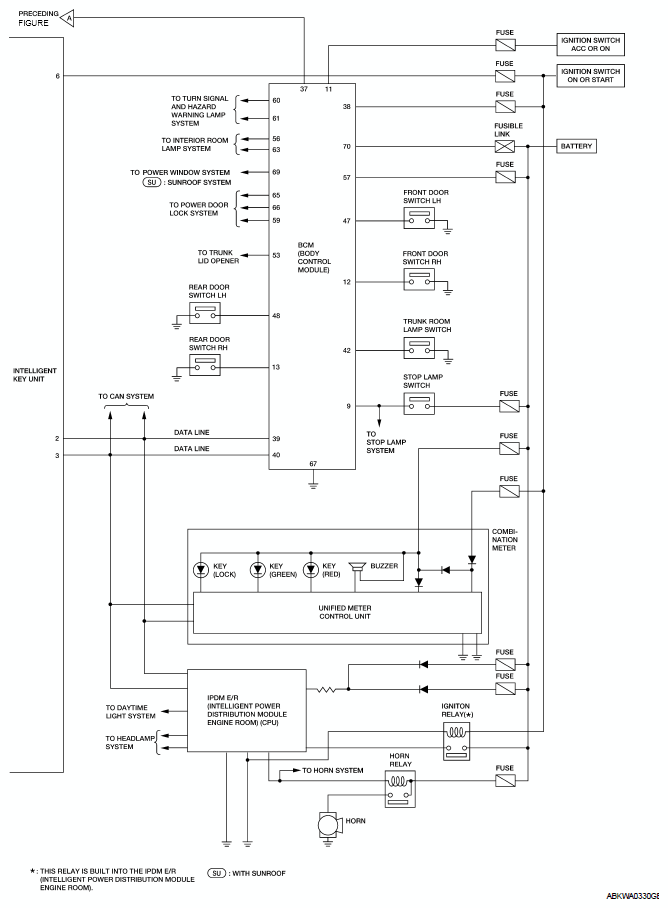

Fig 2: Intelligent Key System - Schematic Diagram (2 Of 2)
G05924663Courtesy of NISSAN MOTOR CO., U.S.A.
