System Description: Speedometer: Notes

With ABS

The ABS actuator and electric unit (control unit) provides a vehicle speed signal to the combination meter via CAN communication lines.

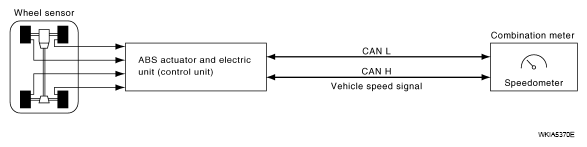

Fig 1: Speedometer System Diagram

Courtesy of NISSAN MOTOR CO., U.S.A.
