lemon-mirror
:
Home
>>
Nissan-Datsun
>>
2009
>>
Sentra SE-R
>>
Repair and Diagnosis
>>
Transmission
>>
Automatic Trans
>>
Continuously Variable Transmission (CVT)
>>
Service Information
>>
Transmission Control Module
>>
Removal And Installation - 2.5L
>>
Components
Removal And Installation - 2.5L: Components

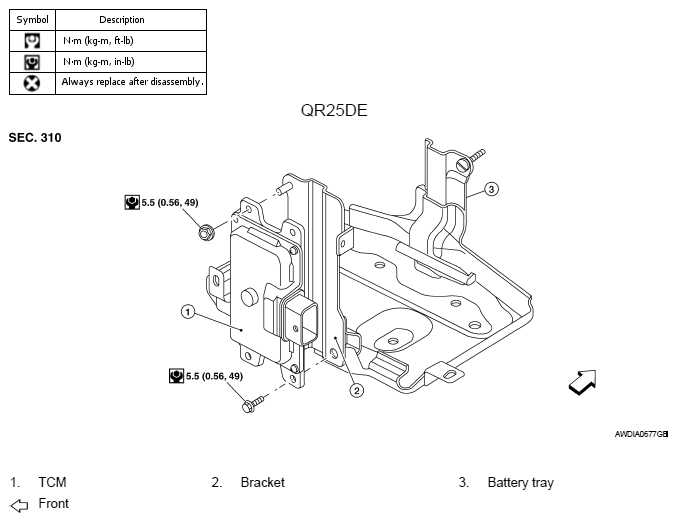

Fig 1: Transmission Control Module Replacement Components With Torque Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
