Engine Control System: Schematic

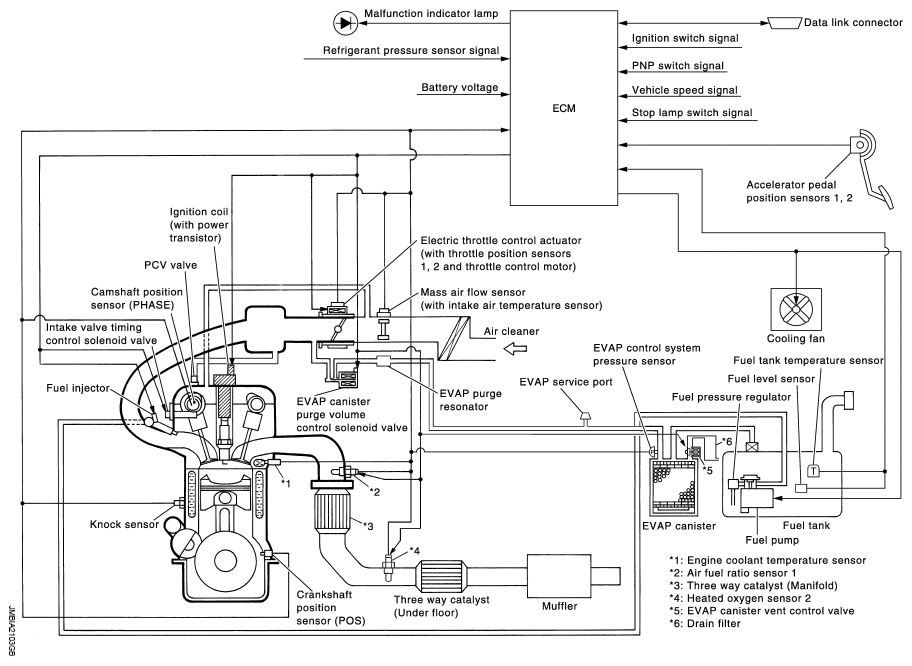

Fig 1: Schematic Diagram - Engine Control System

G05921977

Courtesy of NISSAN MOTOR CO., U.S.A.
