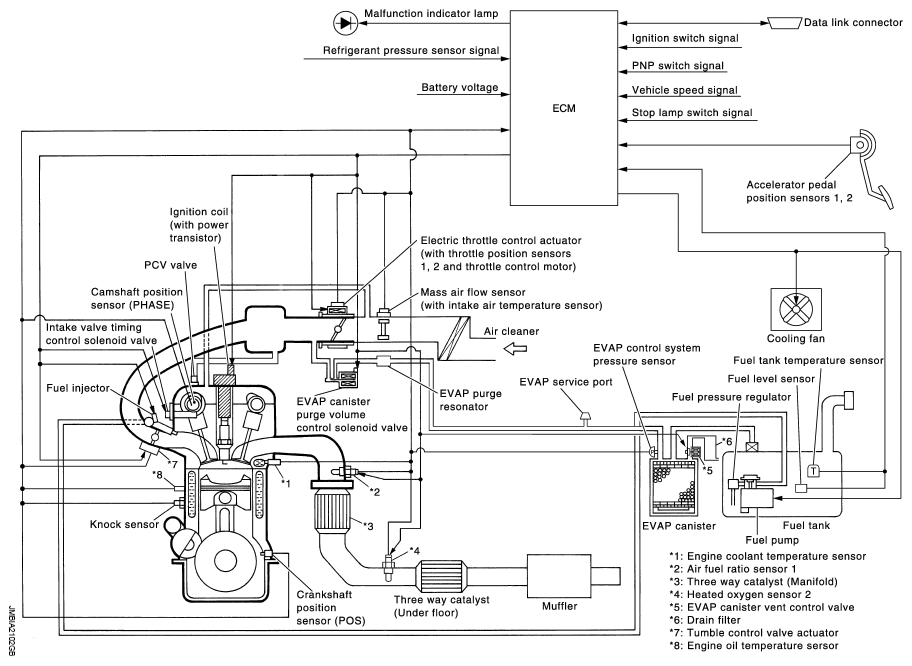

Home >> Nissan-Datsun >> 2009 >> Sentra SL >> Repair and Diagnosis >> Engine Performance >> System >> Engine Control System - Introduction (MR20DE-CALIFORNIA) >> Service Information >> Engine Control System >> Schematic
