Home >> Nissan-Datsun >> 2010 >> Altima Base >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Accelerator Control System (Except Hybrid) >> On-Vehicle Repair >> Accelerator Control System >> Exploded View

Exploded View

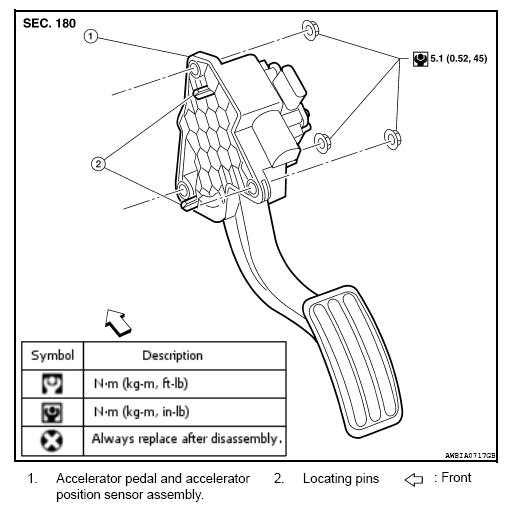

Fig 1: Identifying Accelerator Pedal And Accelerator Position Sensor Assembly
G06555555Courtesy of NISSAN MOTOR CO., U.S.A.
