Removal and Installation: Components

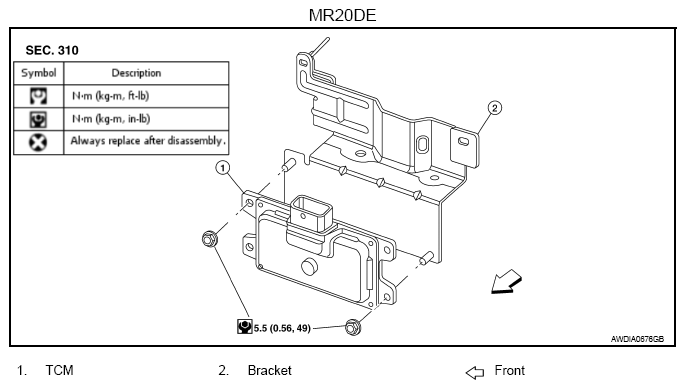

Fig 1: TCM Replacement Components With Torque Specifications - MR20DE
Courtesy of NISSAN MOTOR CO., U.S.A.

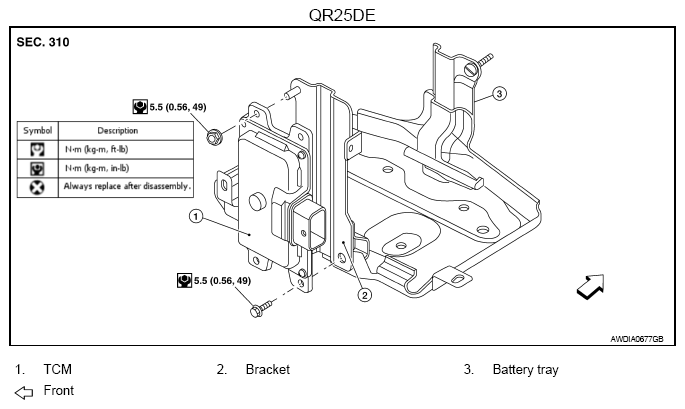

Fig 1: TCM Replacement Components With Torque Specifications - QR25DE
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
