Exploded View

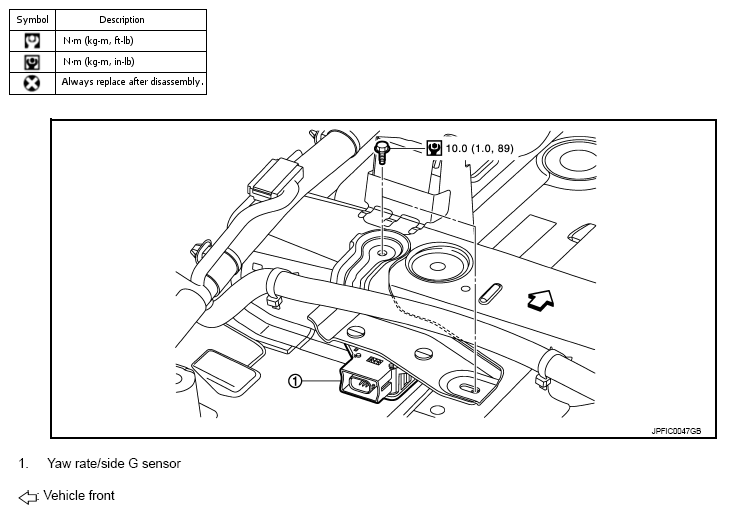

Fig 1: Exploded View Of Yaw Rate/Side G Sensor With Torque Specifications

G07107556

Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to "COMPONENTS " for symbols in the figure.
