Overall Sequence

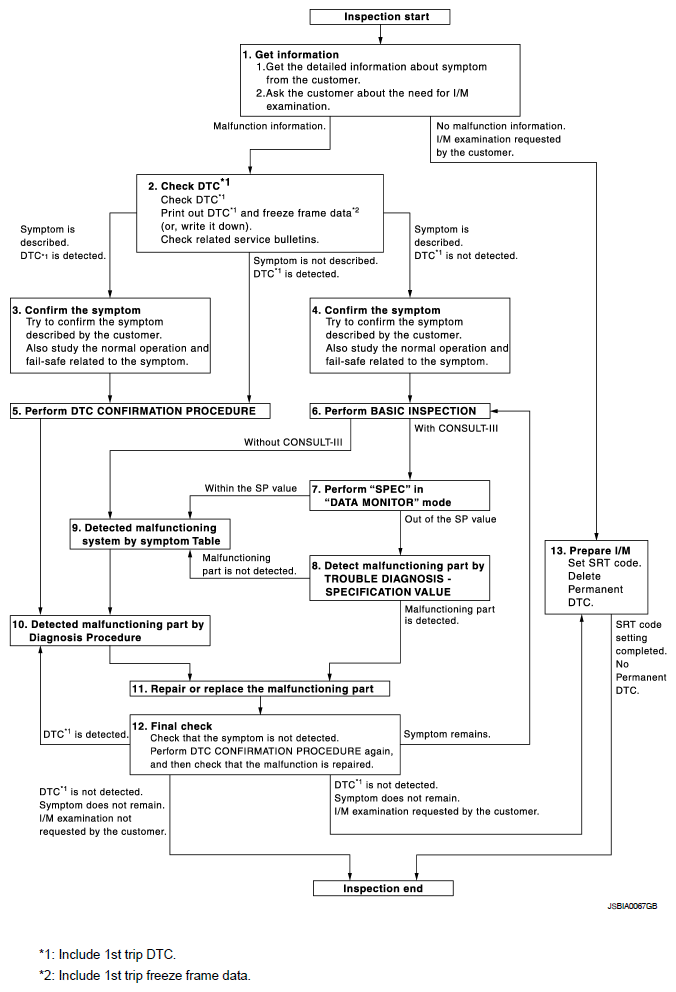

Fig 1: Diagnosis And Repair Work Flow Chart
G06537499Courtesy of NISSAN MOTOR CO., U.S.A.
