Component Parts Location

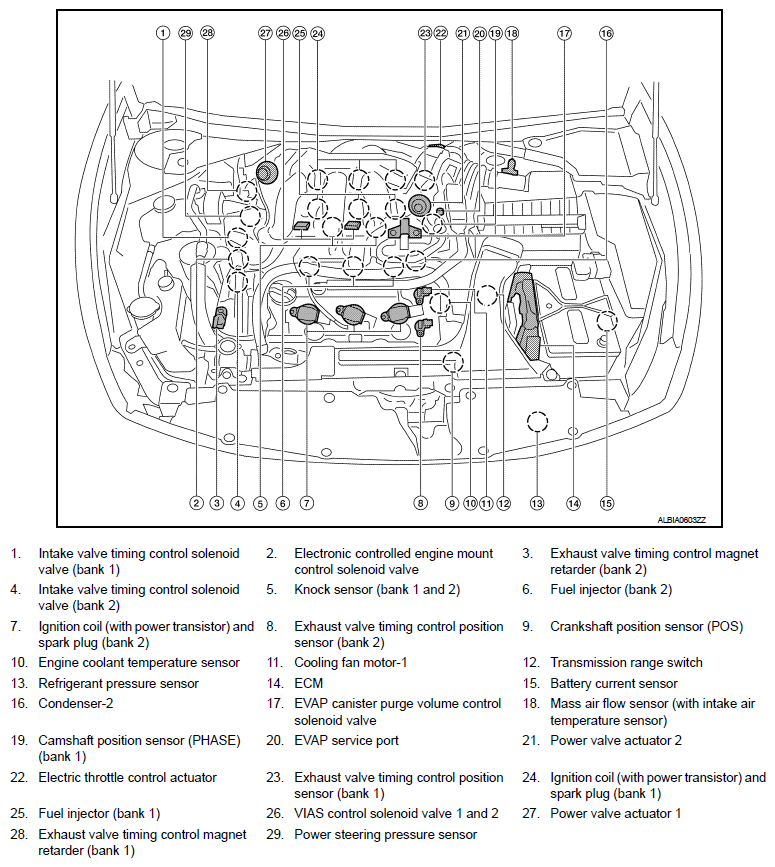

Fig 1: Identifying Electronic Controlled Engine Mount System Component Parts Location (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 2: Identifying Electronic Controlled Engine Mount System Component Parts Location (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 3: Identifying Electronic Controlled Engine Mount System Three Way Catalyst Converter And Muffler

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 4: Identifying Electronic Controlled Engine Mount System Component Parts Location (1 Of 4)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 5: Identifying Electronic Controlled Engine Mount System Component Parts Location (2 Of 4)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 6: Identifying Electronic Controlled Engine Mount System Component Parts Location (3 Of 4)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 7: Identifying Electronic Controlled Engine Mount System Component Parts Location (4 Of 4)

Courtesy of NISSAN MOTOR CO., U.S.A.
