Nissan-Datsun
>>
2011
>>
Quest LE
>>
Repair and Diagnosis
>>
Electrical
>>
Charging Systems
>>
Removal And Installation
>>
Alternator
>>
Exploded View
>>
Disassembly
Exploded View: Disassembly

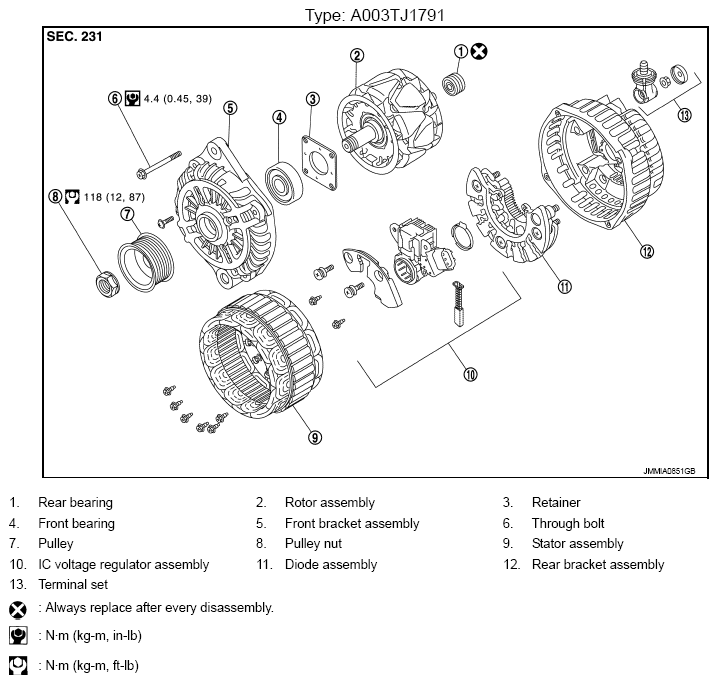

Fig 1: Disassembled View Of Alternator With Torque Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
