Mode 6 - 2011 NISSAN: Juke

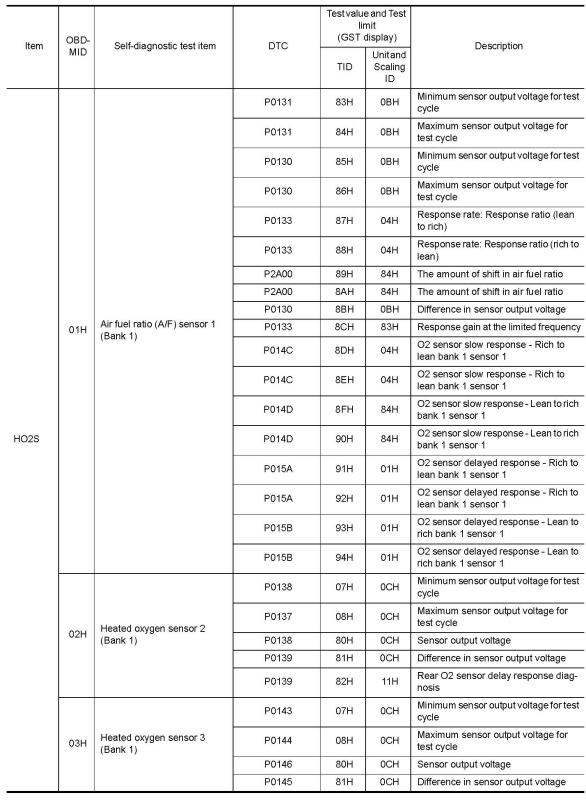

Fig 1: Mode $06 Data For Juke (1 Of 6)

G00524886

Courtesy of NISSAN MOTOR CO., U.S.A.

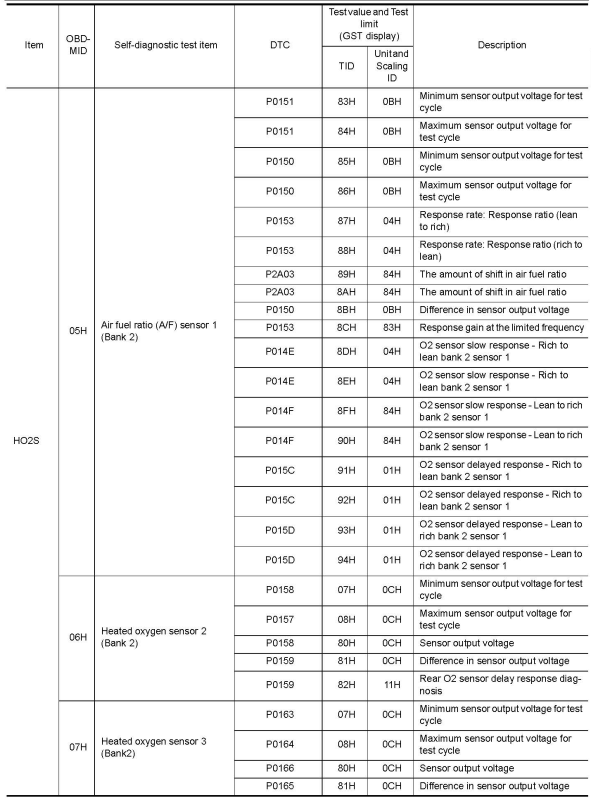

Fig 2: Mode $06 Data For Juke (2 Of 6)

G00524887

Courtesy of NISSAN MOTOR CO., U.S.A.

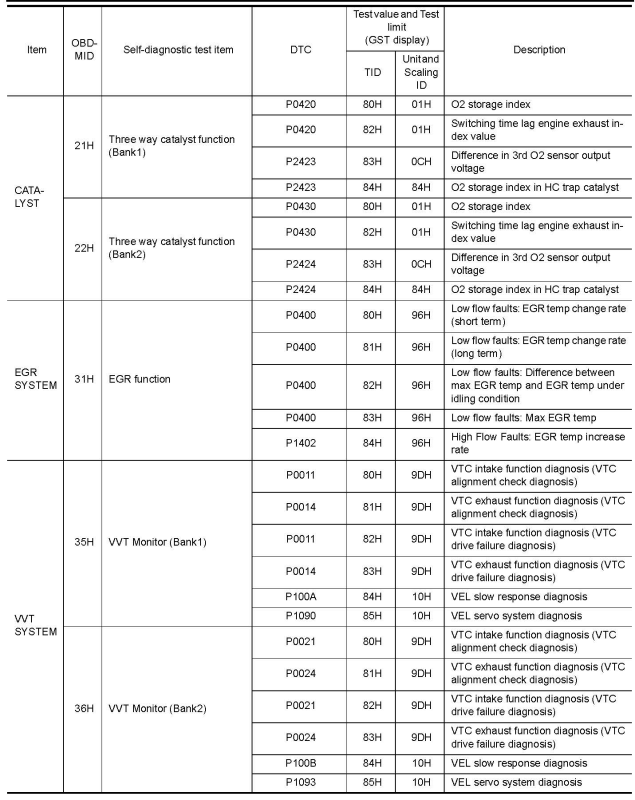

Fig 3: Mode $06 Data For Juke (3 Of 6)

G00524888

Courtesy of NISSAN MOTOR CO., U.S.A.

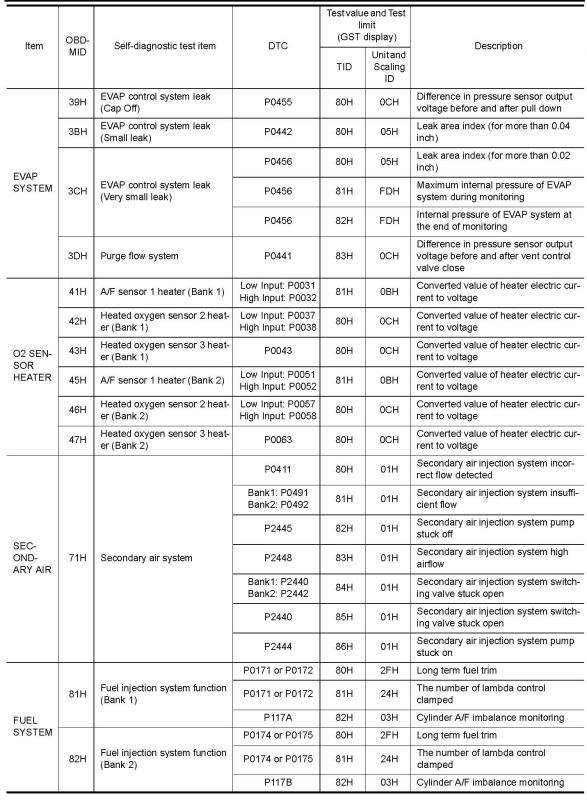

Fig 4: Mode $06 Data For Juke (4 Of 6)

G00524889

Courtesy of NISSAN MOTOR CO., U.S.A.

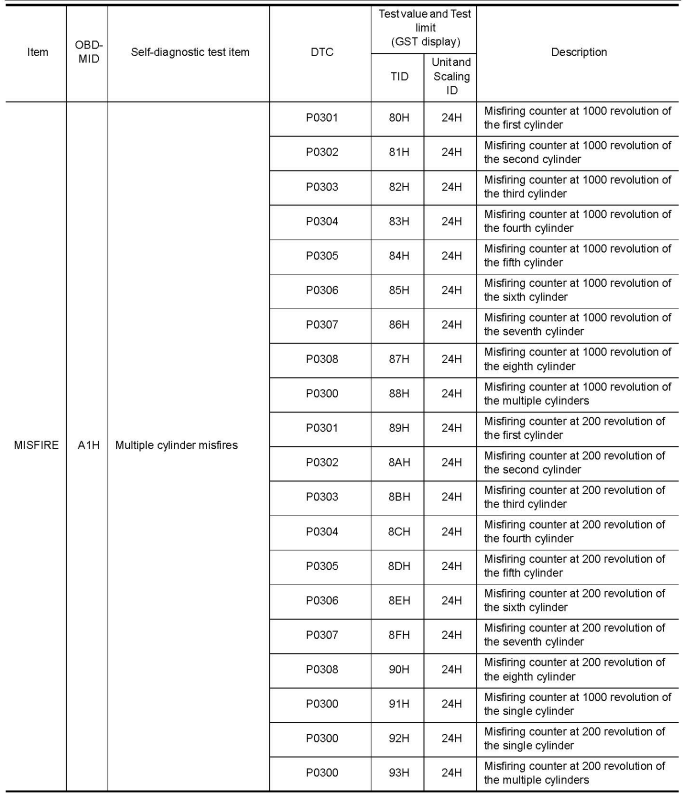

Fig 5: Mode $06 Data For Juke (5 Of 6)

G00524890

Courtesy of NISSAN MOTOR CO., U.S.A.

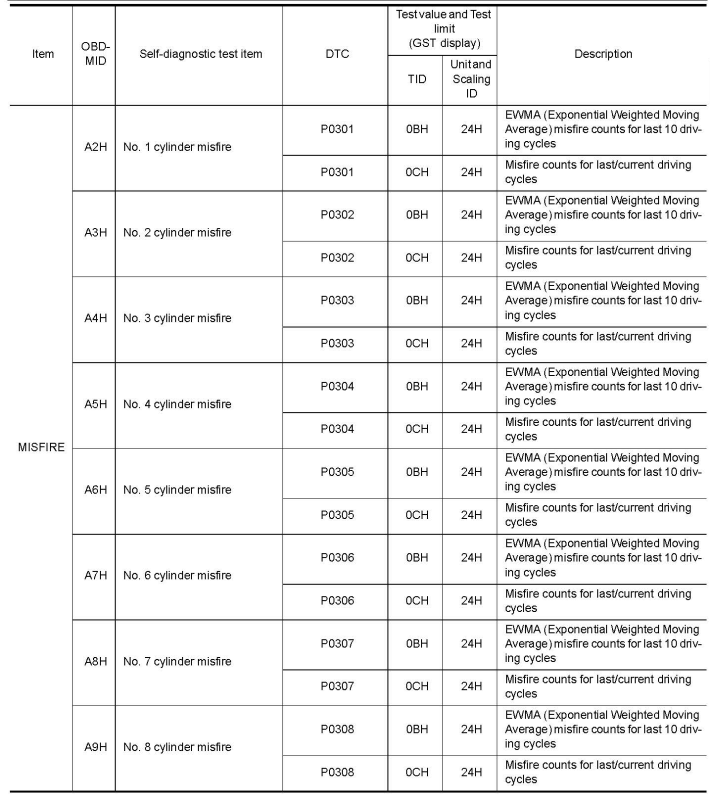

Fig 6: Mode $06 Data For Juke (6 Of 6)

G00524891

Courtesy of NISSAN MOTOR CO., U.S.A.
