Overall Sequence

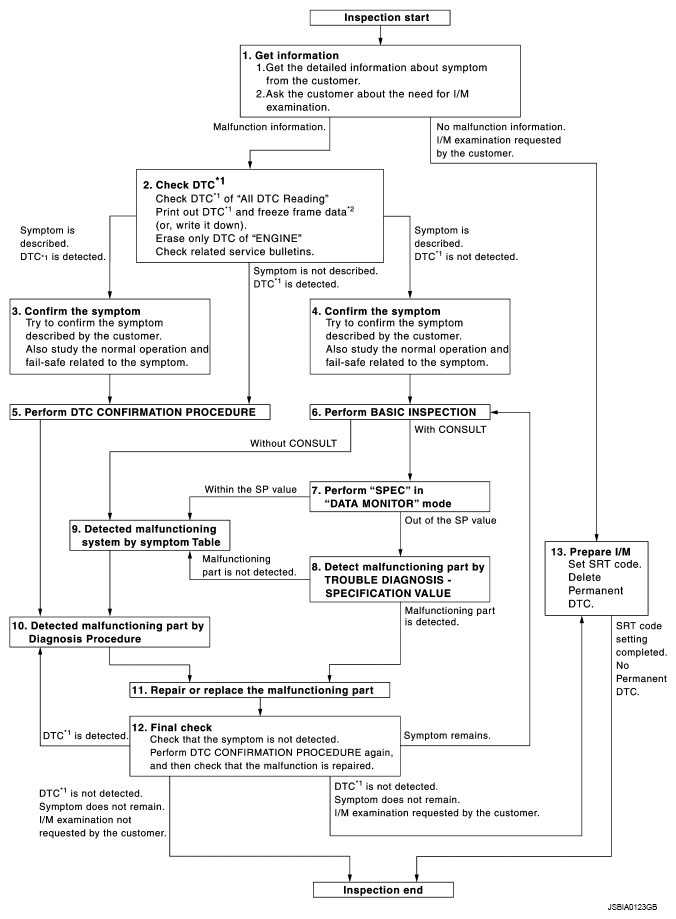

Fig 1: Identifying Diagnosis And Repair Workflow Chart

G08102351

Courtesy of NISSAN NORTH AMERICA, INC.

*1: Include 1st trip DTC.

*2: Include 1st trip freeze frame data.
