Quick Connector

CAUTION:

After connecting fuel tube quick connectors, make sure quick connectors are secure.
Ensure that connector and resin tube do not contact any adjacent parts.

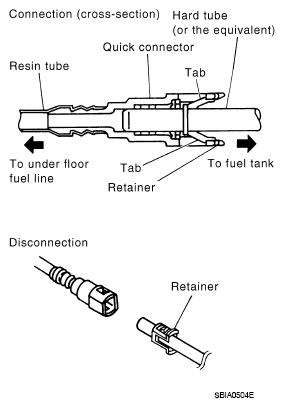

Fig 1: Checking Quick Connector Connections

Courtesy of NISSAN NORTH AMERICA, INC.
