Exploded View: Removal

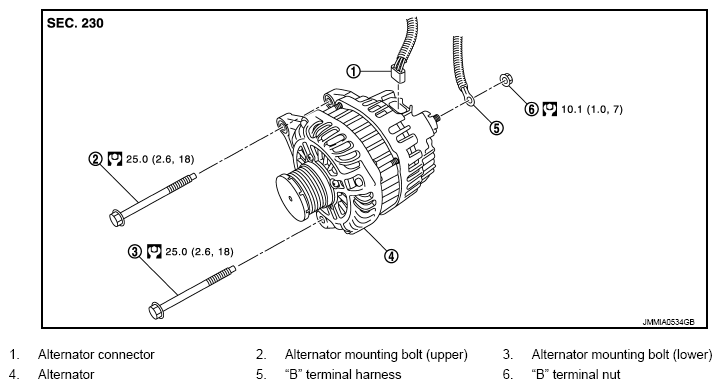

Fig 1: Exploded View Of Alternator With Torque Specifications
G08129221Courtesy of NISSAN NORTH AMERICA, INC.
