Exploded View: Disassembly

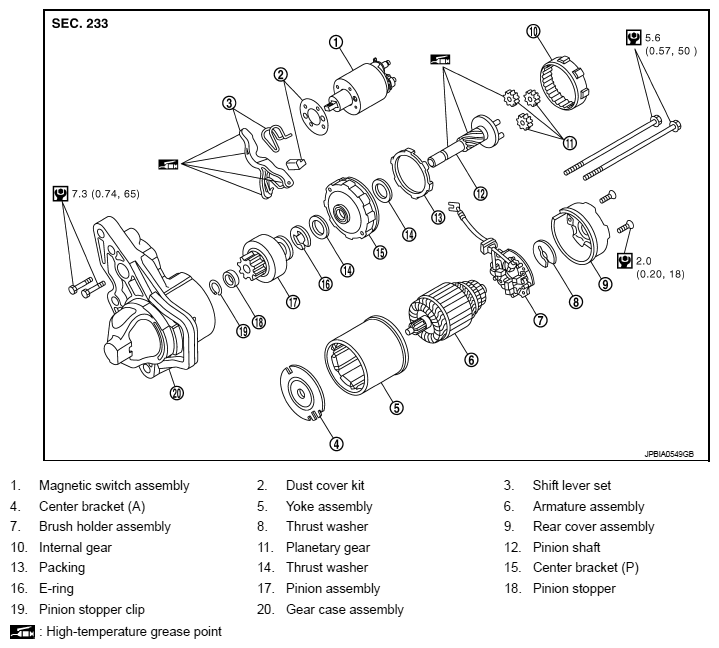

Fig 1: Disassembled View Of Starter Motor With Torque Specification (Type: S114-955)

Courtesy of NISSAN NORTH AMERICA, INC.

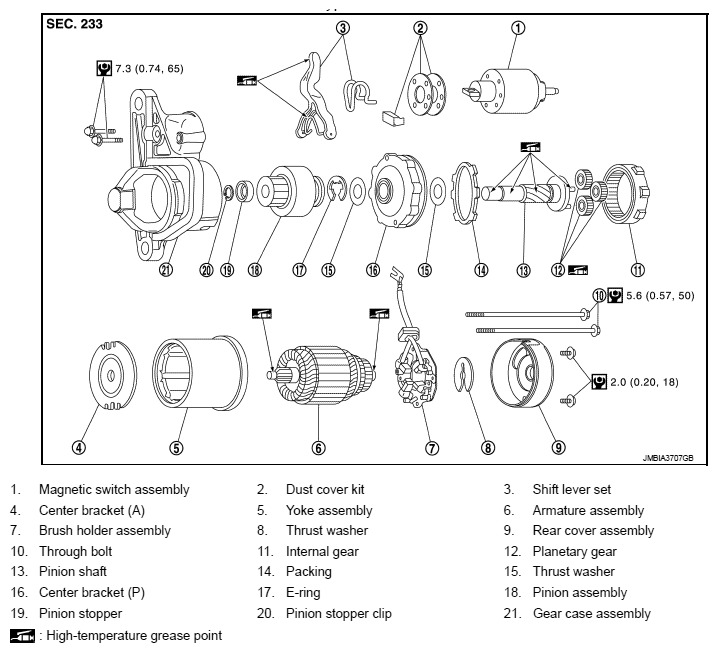

Fig 2: Disassembled View Of Starter Motor With Torque Specification (Type: S114-944)

Courtesy of NISSAN NORTH AMERICA, INC.

NOTE: Apply high-temperature grease to lubricate the bearing, gears and frictional surface when assembling the starter.
