Engine Control System - Component Testing (VQ40DE)
>>
Symptom Diagnosis
>>
Engine Control System Symptoms
>>
Symptom Matrix Chart
>>
System - Basic Engine Control System
System - Basic Engine Control System

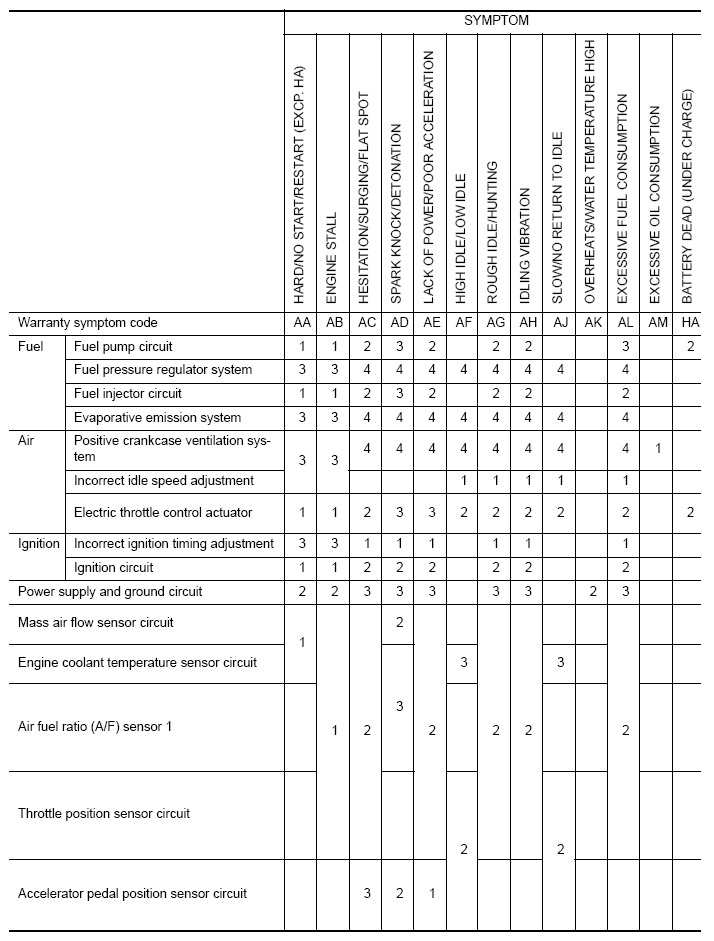

Fig 1: Identifying Basic Engine Control System Symptom Chart (1 Of 2)
Courtesy of NISSAN NORTH AMERICA, INC.

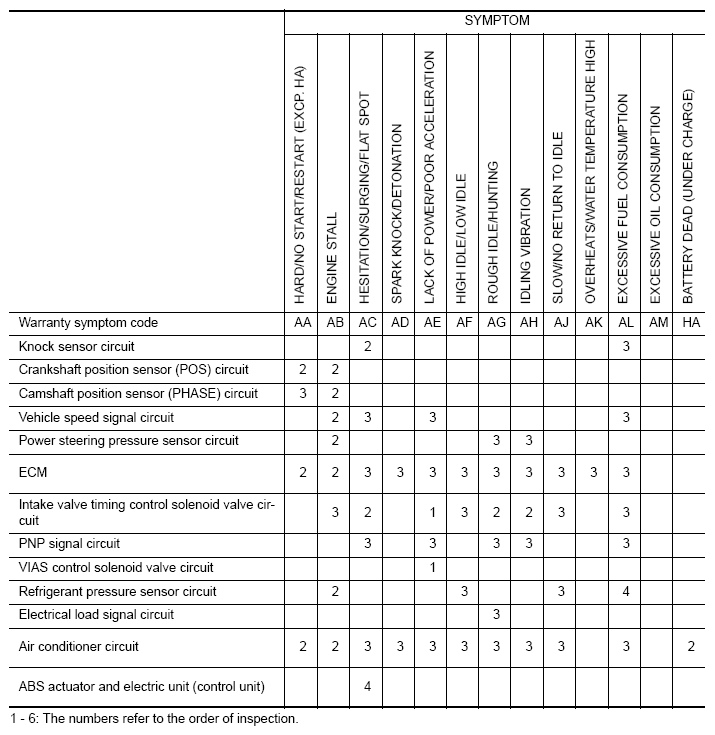

Fig 2: Identifying Basic Engine Control System Symptom Chart (2 Of 2)
Courtesy of NISSAN NORTH AMERICA, INC.
1 - 6: The numbers refer to the order of inspection.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
