lemon-mirror
:
Home
>>
Nissan-Datsun
>>
2012
>>
Maxima S
>>
Repair and Diagnosis
>>
Electrical
>>
Charging Systems
>>
Removal And Installation
>>
Generator
>>
Exploded View
Exploded View

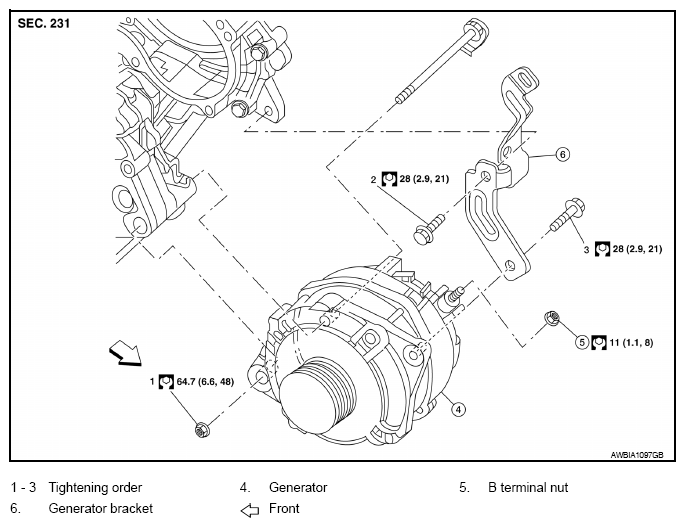

Fig 1: Exploded View Of Generator With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
