Component Parts Location

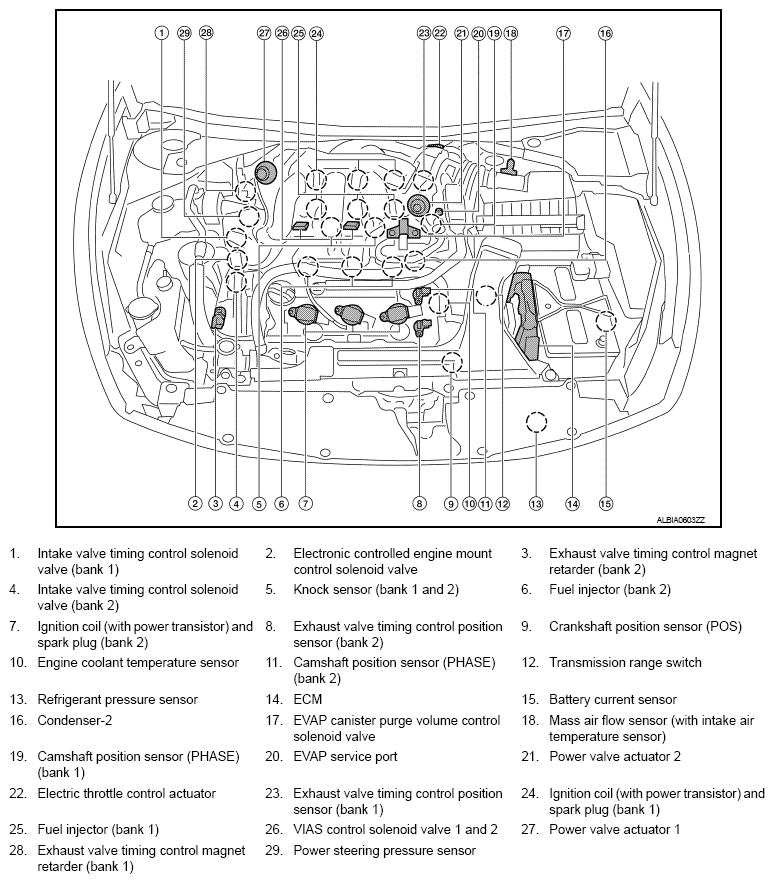

Fig 1: Exhaust Valve Timing Control System Component Parts Location (1 Of 7)

Courtesy of NISSAN NORTH AMERICA, INC.

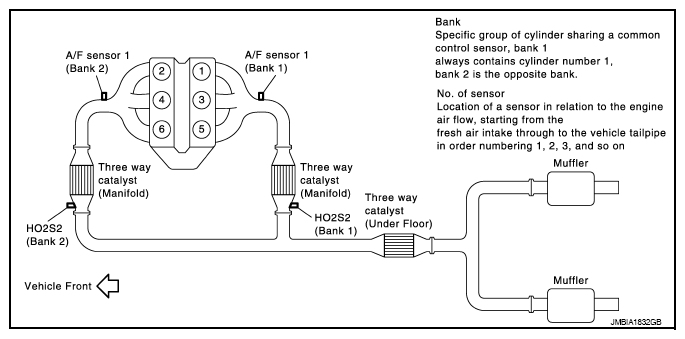

Fig 2: Exhaust Valve Timing Control System Component Parts Location (2 Of 7)

Courtesy of NISSAN NORTH AMERICA, INC.

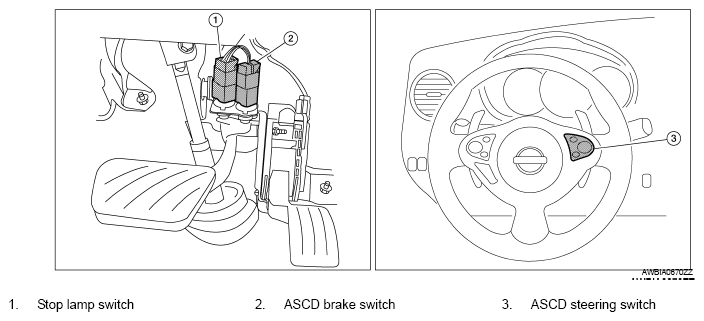

Fig 3: Exhaust Valve Timing Control System Component Parts Location (3 Of 7)

Courtesy of NISSAN NORTH AMERICA, INC.

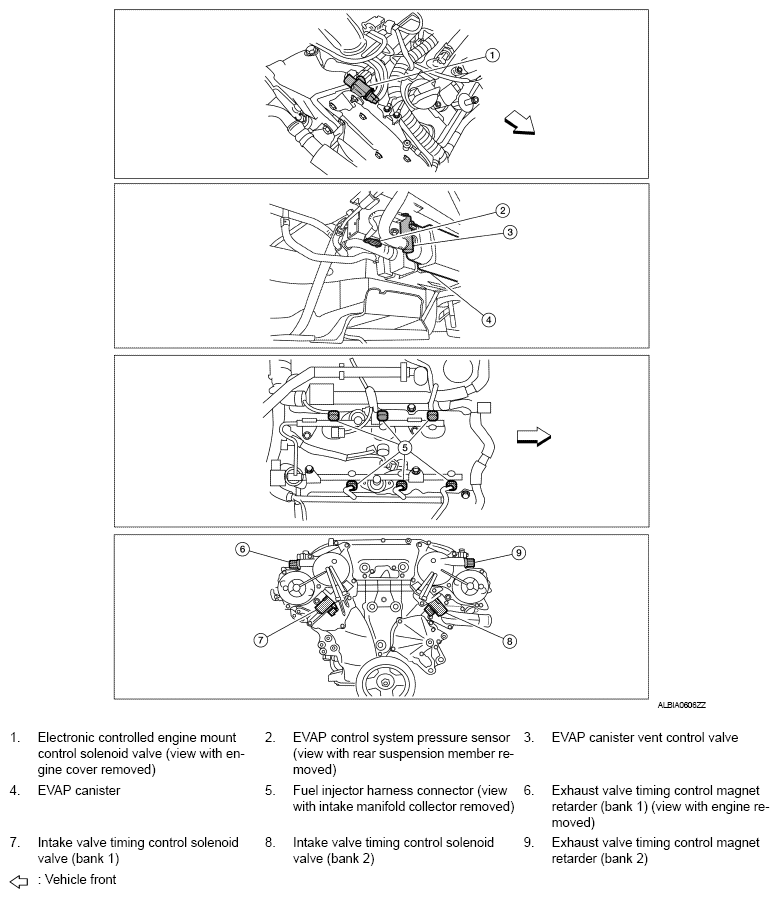

Fig 4: Exhaust Valve Timing Control System Component Parts Location (4 Of 7)

Courtesy of NISSAN NORTH AMERICA, INC.

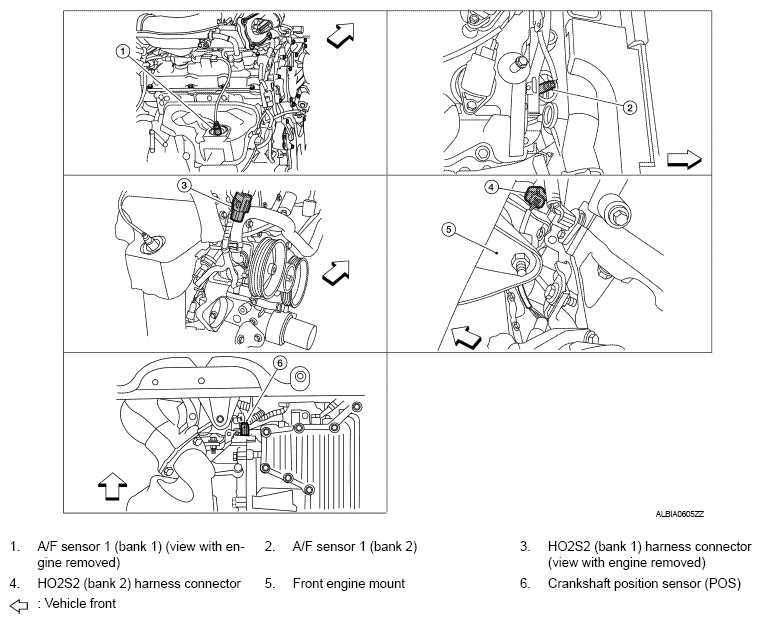

Fig 5: Exhaust Valve Timing Control System Component Parts Location (5 Of 7)

Courtesy of NISSAN NORTH AMERICA, INC.

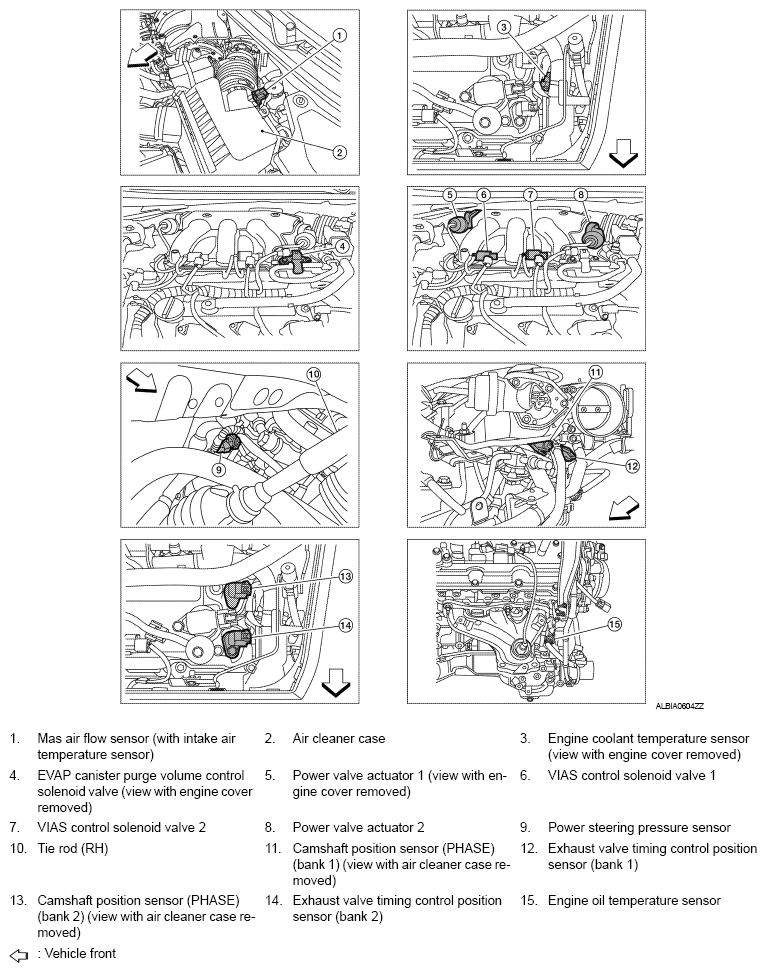

Fig 6: Exhaust Valve Timing Control System Component Parts Location (6 Of 7)

Courtesy of NISSAN NORTH AMERICA, INC.

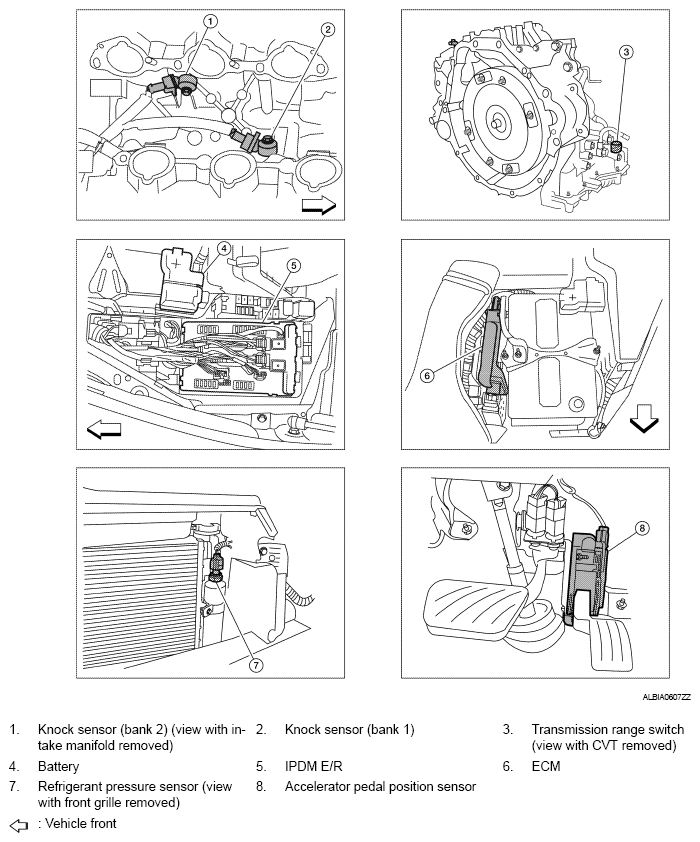

Fig 7: Exhaust Valve Timing Control System Component Parts Location (7 Of 7)

Courtesy of NISSAN NORTH AMERICA, INC.
