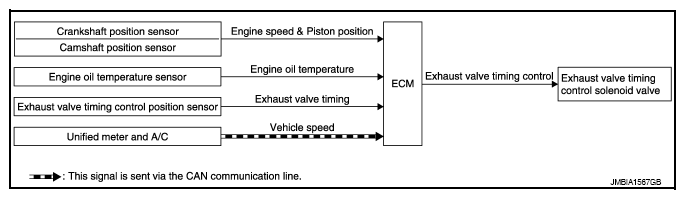

Home >> Nissan-Datsun >> 2012 >> Maxima S >> Repair and Diagnosis >> Engine Performance >> System >> Engine Control System - Introduction >> System Description >> Exhaust Valve Timing Control >> System Diagram
