Removal and Installation: Removal

  1. Remove battery. Refer to "EXPLODED VIEW ".
  2. Disconnect ECM harness connectors. Refer to "HARNESS CONNECTOR ".
  3. Remove ECM mounting nuts (1), and then remove ECM (A).

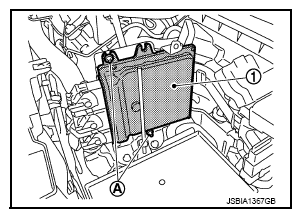

    Fig 1: Identifying ECM & Nuts
    G08171613Courtesy of NISSAN NORTH AMERICA, INC.
