Keyfob Battery Replacement

NOTE: The Signal Tech II tool (J-50190) can be used to test the remote keyless entry keyfob relative signal strength. Refer to the Signal Tech II User Guide for additional information.

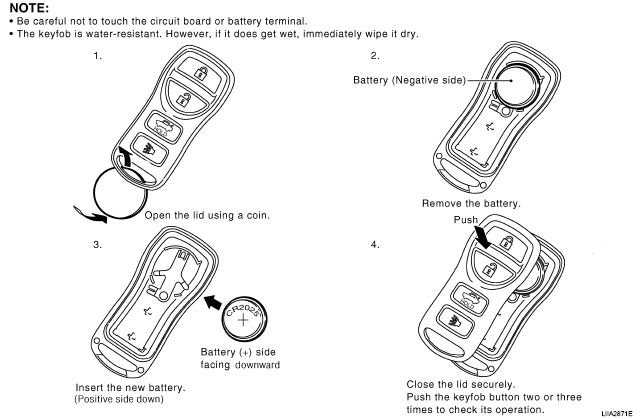

Fig 1: Replacing Keyfob Battery
G04927612Courtesy of NISSAN NORTH AMERICA, INC.
