Engine Control System - Component Testing (Qr25DE)
>>
ASCD Indicator
>>
Wiring Diagram

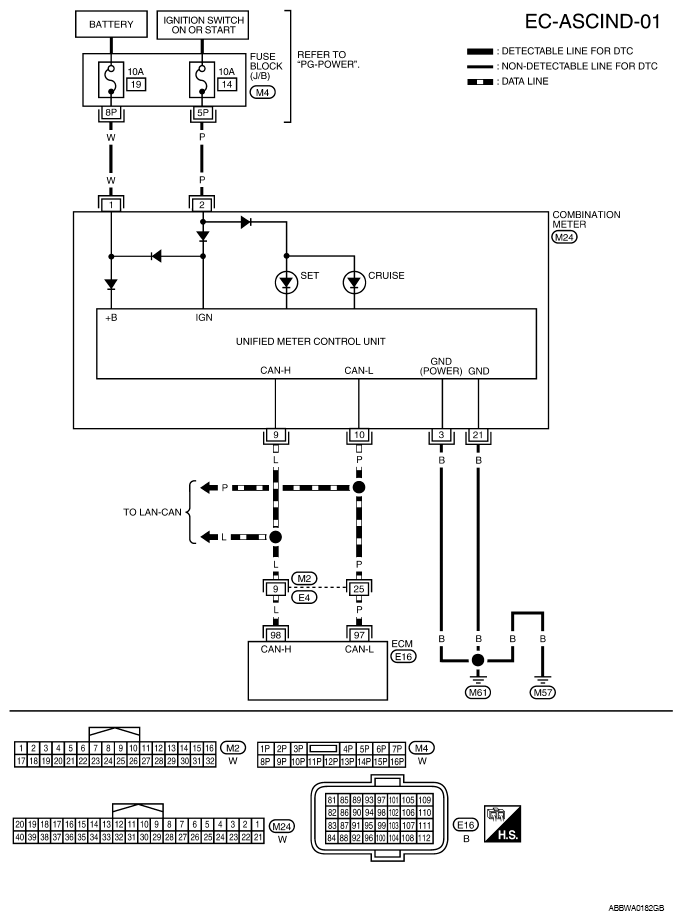

ASCD Indicator: Wiring Diagram
Fig 1: Identifying Wiring Diagram With Connector End View (EC-ASCIND-01)
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
