Method A

  1. Attach timing light to loop wire (1) as shown in the figure.

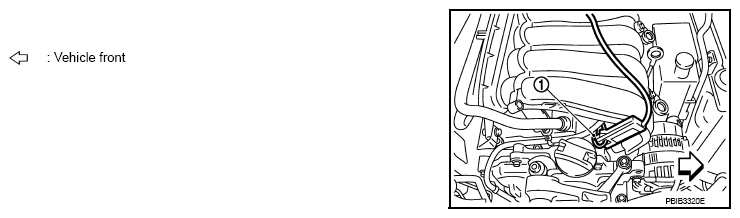

    Fig 1: Identifying Loop Wire Of Timing Light
    G08186062Courtesy of NISSAN NORTH AMERICA, INC.
  2. Check ignition timing.

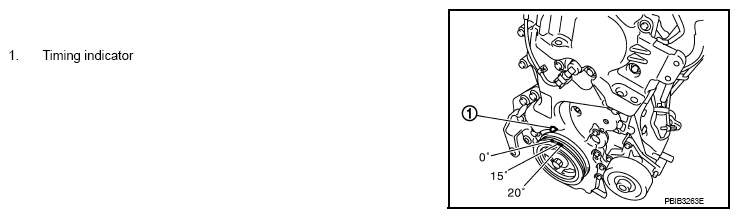

Fig 2: Checking Ignition Timing Using Timing Indicator
G08186063Courtesy of NISSAN NORTH AMERICA, INC.
