Engine Control System - Component Testing (Sedan)
>>
Symptom Diagnosis
>>
Engine Control System Symptoms
>>
Symptom Table
>>
System - Basic Engine Control System
System - Basic Engine Control System

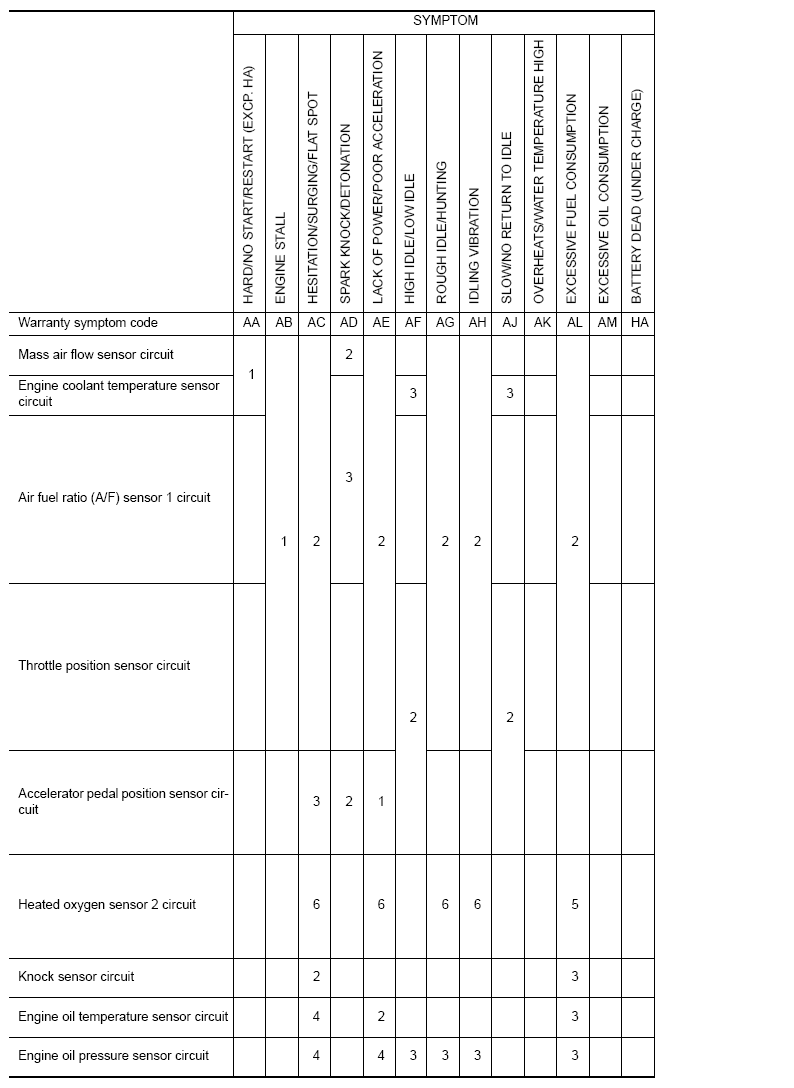

Fig 1: Basic Engine Control System Symptoms Chart (1 Of 3)
Courtesy of NISSAN NORTH AMERICA, INC.

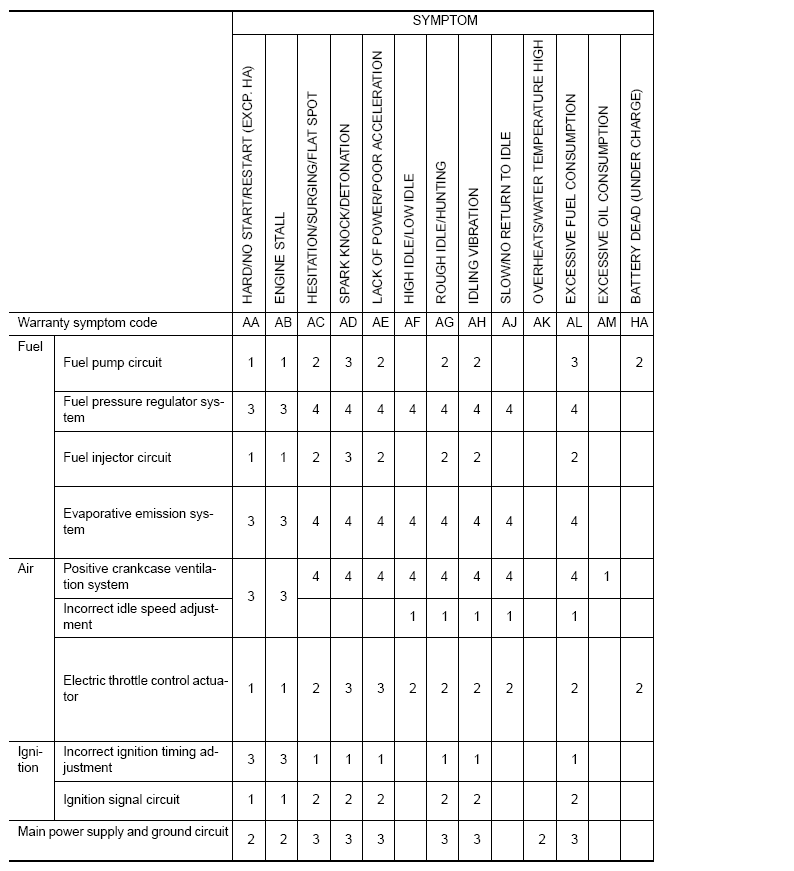

Fig 2: Basic Engine Control System Symptoms Chart (2 Of 3)
Courtesy of NISSAN NORTH AMERICA, INC.
Fig 3: Basic Engine Control System Symptoms Chart (3 Of 3)
Courtesy of NISSAN NORTH AMERICA, INC.
