Component Inspection (Condenser)

  1. CHECK CONDENSER
    1. Turn ignition switch OFF.
    2. Disconnect condenser harness connector.
    3. Check resistance between condenser terminals as per the following.
      Terminals Resistance
      1 and 2 Above 1 MΩ [at 25C° (77C°)]

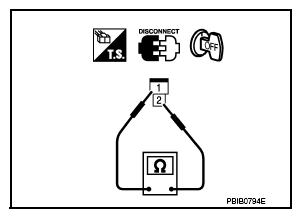

      Fig 1: Checking Resistance Between Condenser Terminals
      G08909060Courtesy of NISSAN NORTH AMERICA, INC.

      Is the inspection result normal?

      YES: INSPECTION END

      NO: Replace condenser.
