Engine Control System (Introduction)
>>
System Description
>>
Component Parts
>>
Engine Control System
>>
ENGINE CONTROL SYSTEM: Component Parts Location
>>
Body Compartment
Body Compartment

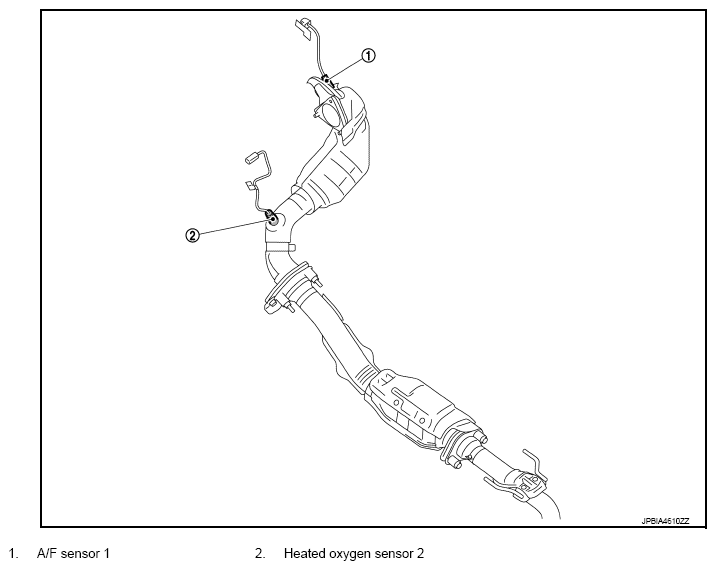

Fig 1: Identifying A/F Sensor And Heated Oxygen Sensor (AWD)
Courtesy of NISSAN NORTH AMERICA, INC.
Fig 2: Identifying Body Compartment Components
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
